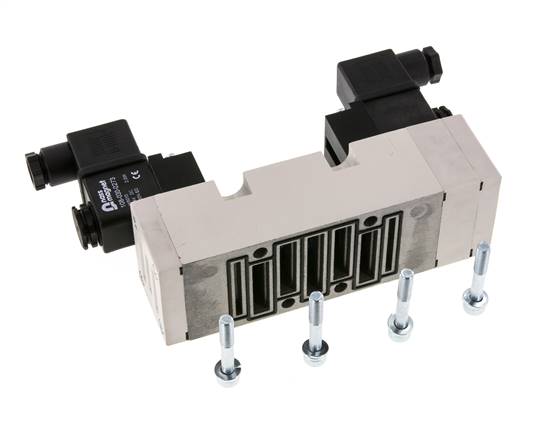

ISO valve (size 2), 5/3-way, Centre position vented, 24 V AC
{{ $t('shop.all.artikelnummer') }}:
SIV543 IPSC-A4
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
M (plug size 1)
Scope of delivery:
Valve including flange gasket, fixing screws, coil(s) and plug.
Switching time (at 5 bar):
< 45 ms
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
M (plug size 1)
Scope of delivery:
Valve including flange gasket, fixing screws, coil(s) and plug.
Switching time (at 5 bar):
< 45 ms
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Control voltage | 24 V AC |
| function | Centre position vented |
| ISO size | 2 |
| Operating pressure [bar] | 2 - 10 |
| flow [l/min] | 2200 |
| Power consumption (AC) [VA] | 4,1 |
| Spare solenoid coil | MAG M 24VAC |
{{ $t('shop.display.artikel.info') }} SIV543IPSC-A4
| {{ $t('shop.all.gtin') }} | 4050571629151 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | YPC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 739) atlas9_seiten/739.pdf
Documentation doku/magnetventile_5_2_5_3.pdf
Documentation doku/magnetventile_5_2_5_3.pdf
