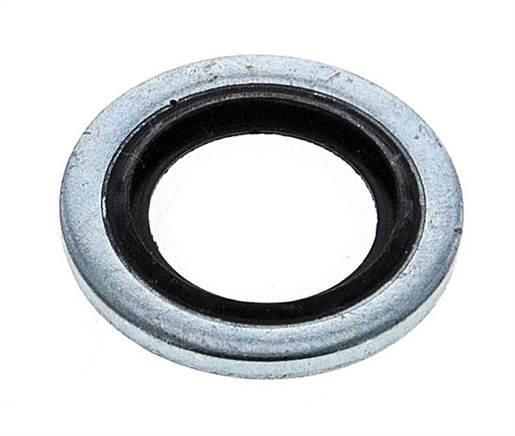

Hydraulic gasket with NBR insert, for thread G 1/4"
{{ $t('shop.all.artikelnummer') }}:
DR 14 HD
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Type zinc-plated steel: with NBR insert (optional with FKM insert), type 1.4301: with FKM insert
Temperature range:
-30°C up to max. +100°C (FKM: -15°C to max. +200°C)
Operating pressure:
up to 400 bar (D > 40: up to 250 bar), can be used at up to 1000 bar if countersunk on sealing surface
Advantages:
•after attaching to the thread, the gasket is held in place by the retaining lip,
•Sealing effect regardless of tightening torque,
•relative resistant to heavy tightening of a screw connection
Type zinc-plated steel: with NBR insert (optional with FKM insert), type 1.4301: with FKM insert
Temperature range:
-30°C up to max. +100°C (FKM: -15°C to max. +200°C)
Operating pressure:
up to 400 bar (D > 40: up to 250 bar), can be used at up to 1000 bar if countersunk on sealing surface
Advantages:
•after attaching to the thread, the gasket is held in place by the retaining lip,
•Sealing effect regardless of tightening torque,
•relative resistant to heavy tightening of a screw connection
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Version | with NBR insert |
| Thread type | imperial |
| for threads | G 1/4" |
| d [mm] | 13,7 |
| D [mm] | 20,6 |
| s [mm] | 2 |
| Temperature range [°C] | -30 to +100 |
| Operating pressure [bar] | 400 |
{{ $t('shop.display.artikel.info') }} DR14HD
| {{ $t('shop.all.gewicht') }} | 2,4 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571265472 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 40169991 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 1015) atlas9_seiten/1015.pdf
3D CAD file (volume model) protected/cad/3d/73997/dr14hd19427.stp
3D CAD file (volume model) protected/cad/3d/73997/dr14hd19427.stp
