Item description
Version:

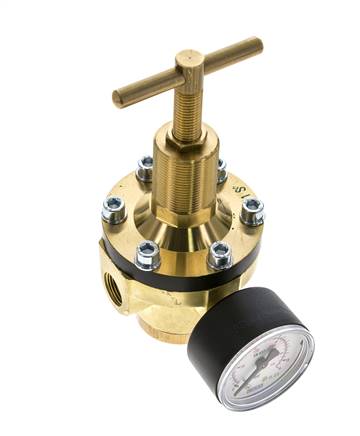

Piston pressure reducer reversible (with secondary relieving)
Materials:
Bodies: Brass, seals: NBR
Temperature range:
-10 to +90 °C
Input pressure:
max. 60 bar
Pressure gauge connection:
G 1/4"
Switch panel thread:
DR 2260: M 28x1,5
Media:
Oiled and unoiled compressed air, neutral gasses
Scope of delivery:
Pressure regulator incl. 50 mm pressure gauge
Optional:
Other pressure regulation ranges: 1-20 bar -20, 2-35 bar -35, 3-50 bar -50
Advantages:
•Automatic venting in the event of overpressure on the secondary side
Piston pressure reducer reversible (with secondary relieving)
Materials:
Bodies: Brass, seals: NBR
Temperature range:
-10 to +90 °C
Input pressure:
max. 60 bar
Pressure gauge connection:
G 1/4"
Switch panel thread:
DR 2260: M 28x1,5
Media:
Oiled and unoiled compressed air, neutral gasses
Scope of delivery:
Pressure regulator incl. 50 mm pressure gauge
Optional:
Other pressure regulation ranges: 1-20 bar -20, 2-35 bar -35, 3-50 bar -50
Advantages:
•Automatic venting in the event of overpressure on the secondary side
Properties
Further information on DR2260
| Weight | 1,4 kg / pcs |
| GTIN | 4050571265854 |
| Customs duty number | 84811099 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 614) (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*measured at P1 = 20 bar, P2 = 10 bar, Delta p = 4 bar
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
