High-performance precision pressure regulator, G 1/2", 0,05 to 3 bar

FDR 03-3

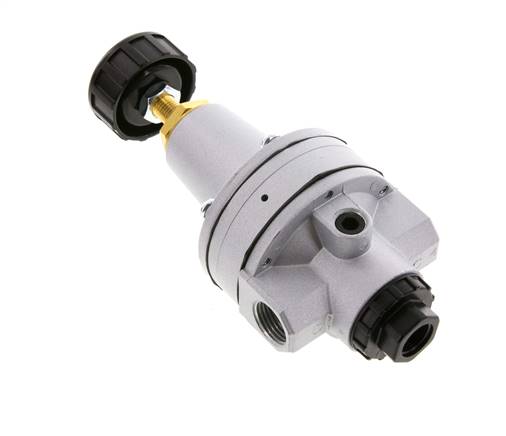

Exemplary representation: High-performance precision pressure regulator, series 2 Schematic symbol
250,95€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
High performance precision pressure regulators are used in order to adjust an extremely accurate pressure - regardless of pre-pressure and flow performance. It is used for example for control and regulation units in process engineering, which has the highest pressure stability requirements.

Version:
Precision pressure reducer, reversible (with secondary relieving), (model series 2: collective relieving through 3/8"-borehole)

Materials:
Body: die-cast zinc Z410, diaphragms and seals: EPDM (model series 2: NBR)

Temperature range:
-10°C to max. +60°C (model series 2: -35°C to max. +60°C)

Input pressure:
max. 16 bar

Pressure gauge connection:
G 1/8" (model series 2: G 1/4")

Switch panel thread:
M 12x1 (series 2: M 20x1.5)

Own air consumption:
1.7 to 2 l/min

Control accuracy:
± 2.5 mbar

Media:
fine-filtered compressed air (5 µm) & neutral gases, oil-free

Flow:
900 l/min (model series 2: 6500 l/min), relief system: 200 l/min (model series 2: 800 l/min)

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU

Advantages:
•Automatic venting in case of overpressure on the secondary side (series 2: up to 800 l/min),
•High flow rate at constant pressure,
•Fine regulation of pressure independent of inlet pressure and flow rate,
•Series 2: can be used down to -35 °C!,
•Supplied exhaust air (G 3/8") for secondary venting (series 2)


Warning:
This device is supplied without a pressure gauge. We recommend ordering a suitable pressure gauge separately.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Model series Model series 2
Thread G 1/2"
Pressure regulation range [bar] 0,05 - 3
Mounting brackets BW 30
Temperature range [°C] -35 to +60
FDR03-3
{{ $t('shop.all.gewicht') }} 1,4 kg / pcs
{{ $t('shop.all.gtin') }} 4050571295127
{{ $t('shop.display.artikel.zollwarennummer') }} 84811099
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 612a) atlas9_seiten/612a.pdf
    Documentation doku/feindruckregler.pdf
    Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
    3D CAD file (volume model) protected/cad/3d/70381/fdr03-3#31811.stp

  • {{ $t('shop.display.datenblatt.titel') }} (Print view)


{{ $t('shop.all.unverbindliche_richtwerte') }}
