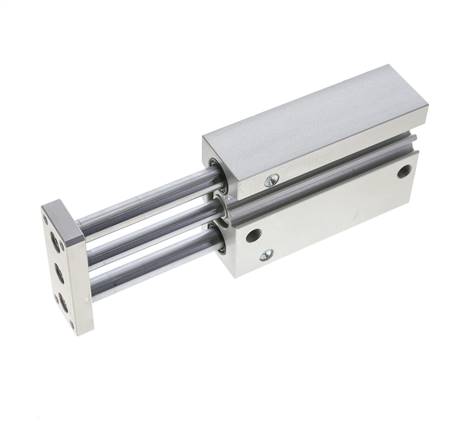

Guide cylinder, with slide bearing, pistons 20mm,stroke 75mm
{{ $t('shop.all.artikelnummer') }}:
ZDFM 20/75 G
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Piston diameter [mm] | 20 |
| Stroke [mm] | 75 |
| Version | with slide bearing |
| F (compressed air port) | G 1/8" |
| Repair sets | ZDFM 20 REP |
| lateral force permissible [N] | 58 |
| permissible torque at the end-plate [Nm] | 1,05 |
| A [mm] | 10 |
| B [mm] | 30,0 |
| C [mm] | 12 |
| D [mm] | 10 |
| E1 [mm] | 60 |
| E2 [mm] | 18 |
| F1 [mm] | 11,0 |
| F2 [mm] | 9 |
| F3 [mm] | 8 |
| G1 [mm] | 72 |
| G2 [mm] | 29 |
| H [mm] | 52 |
| H1 [mm] | 46 |
| L1 [mm] | 37,0 |
| L2 [mm] | 49,0 |
| L3 [mm] | 79,0 |
| M1 [mm] | 74 |
| M2 [mm] | 36 |
| N [mm] | 26 |
| N1 [mm] | 17 |
| N2 [mm] | 19 |
| O1 [mm] | 13 |
| O2 [mm] | 10 |
| O3 [mm] | 64 |
| P1 | M 5 |
| Q [mm] | 20 |
| R [mm] | 8,0 |
| T1 [mm] | 2,5 |
| T2 [mm] | 4,5 |
{{ $t('shop.display.artikel.info') }} ZDFM20/75G
| {{ $t('shop.all.gewicht') }} | 1 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571810283 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 870_871) atlas9_seiten/870_871.pdf
