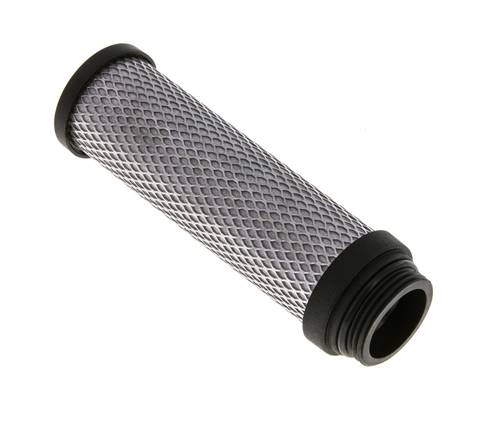

FUTURA Replacement filter (active carbon) , Futura 4 / Multifix 4

Materials:
Body: PA 66 GF60, seals: NBR, condensate container: polycarbonate

Temperature range:
-10 to +50 °C

Input pressure:
1.5 - 16 bar (model series 0: 1.5 - 12 bar)

Condensate draining:
Semi-automatic** (activated carbon filter without drainage)

Media:
Compressed air, neutral gases

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 0 or differential pressure indicator / differential pressure gauge)

Advantages:
•simple assembly of single components using coupling kits within a model series.

Application:
Activated carbon filters are used for odour filtering of compressed air. The activated carbon absorbs the oil vapour molecules contained in the compressed air. An additional filter cloth prevents the activated carbon particles from being pulled by the airflow. We recommend the upstream connection of a prefilter and microfilter to increase the service life.

Materials:
Body: PA 66 GF60, seals: NBR, condensate container: polycarbonate

Temperature range:
-10 to +50 °C

Input pressure:
0 - 16 bar (model series 0: 0 - 12 bar)

Media:
Compressed air, neutral gases

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU

Residual oil content:
0.005 mg/m³ (Class 0 according to DIN ISO 8573-1)

Advantages:
•simple assembly of single components using coupling kits within a model series.

Optional:
Version with metal bowl and inspection tube (model series 0: without inspection tube) -M

Version	Replacement filter (active carbon)
Model series	Futura 4 / Multifix 4

{{ $t('shop.all.gewicht') }}	100 g / pcs
{{ $t('shop.all.gtin') }}	4050571215910
{{ $t('shop.display.artikel.zollwarennummer') }}	84219990
{{ $t('shop.display.artikel.rohskonform') }}	{{ $t('shop.all.ja') }}
