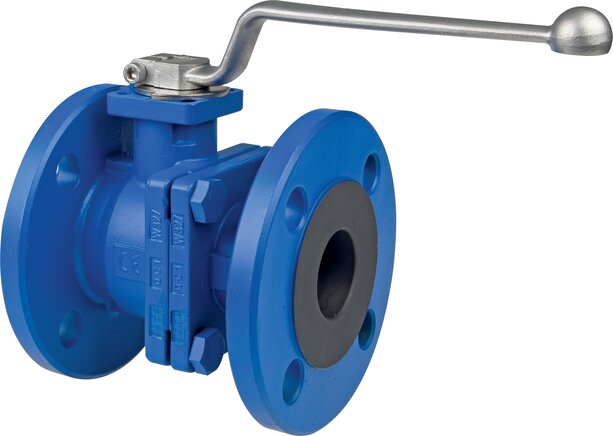

Flanged ball valve, cast steel, DN25-PN40 (DIN/EN), DVGW
{{ $t('shop.all.artikelnummer') }}:
KHFL 25/40
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: cast steel, ball: stainless steel 1.4301, seal: PTFE / FKM
Temperature range:
-20 to +180 °C, gas: -20°C to max. +60°C (dependent on operating pressure)
Media:
Water, oil, compressed air, vacuum (max. - 0.9 bar), fuels, gases according to DVGW Worksheet up to 40 bar
Advantages:
•Length to DIN 3202-F4 (DIN EN 558-1, series 14),
•Mounting flange according to ISO 5211 allows mounting of a drive in conjunction with mounting bridge and shaft adapter
Body: cast steel, ball: stainless steel 1.4301, seal: PTFE / FKM
Temperature range:
-20 to +180 °C, gas: -20°C to max. +60°C (dependent on operating pressure)
Media:
Water, oil, compressed air, vacuum (max. - 0.9 bar), fuels, gases according to DVGW Worksheet up to 40 bar
Advantages:
•Length to DIN 3202-F4 (DIN EN 558-1, series 14),
•Mounting flange according to ISO 5211 allows mounting of a drive in conjunction with mounting bridge and shaft adapter
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Flange connection | DN25-PN40 (DIN/EN) |
| Nominal width [mm] | 25 |
| L [mm] | 125 |
| Operating pressure [bar] | -0,9 to 40 |
| A [mm] | 68 |
| B [mm] | 85 |
| d [mm] | 115 |
| R [mm] | 170 |
| ISO 5211 | F05 |
{{ $t('shop.display.artikel.info') }} KHFL25/40
| {{ $t('shop.all.gewicht') }} | 4,1 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571423933 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 522) atlas9_seiten/522.pdf
Documentation: DVGW and Pressure Equipment Directive statement konf_erkl/stellungnahme_dvgw_und_druckgeraeterichtlinie_khfl_40_de_en_la_rev001.pdf
3D CAD file (volume model) protected/cad/3d/70048/khfl2540#23807.stp
Documentation: DVGW and Pressure Equipment Directive statement konf_erkl/stellungnahme_dvgw_und_druckgeraeterichtlinie_khfl_40_de_en_la_rev001.pdf
3D CAD file (volume model) protected/cad/3d/70048/khfl2540#23807.stp
