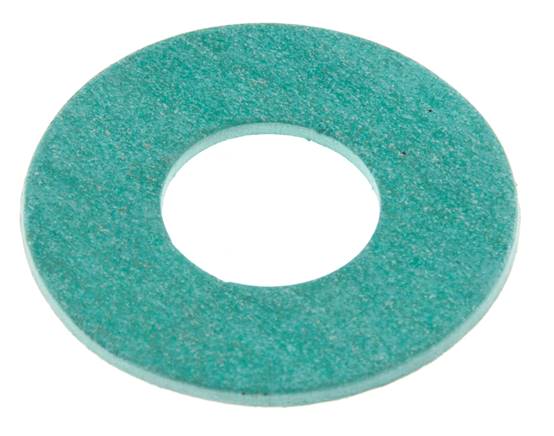

Flange seal DN 15, 22x50x2 mm, C 4400
{{ $t('shop.all.artikelnummer') }}:
FLDR 15
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
C 4400, asbestos-free
Temperature range:
-100 to +150 °C (for application engin. test up to max. +400°C)
Operating pressure:
40 bar (at application techn. testing up to max. 100 bar), compressive strength 25 N/mm²
Media:
Oils, refrigerants, hot water, steam, gases, salt solutions, fuels, acids, hydrocarbons and lubricants
Optional:
Silicone material, food-safe in accordance with the requirements of BfR Silicone XV, FDA 21 CFR 177.2600 & Regulation (EC) 1935/2004, 60° Shore A (-55°C to max. +200°C at max. 6 bar) -LE
C 4400, asbestos-free
Temperature range:
-100 to +150 °C (for application engin. test up to max. +400°C)
Operating pressure:
40 bar (at application techn. testing up to max. 100 bar), compressive strength 25 N/mm²
Media:
Oils, refrigerants, hot water, steam, gases, salt solutions, fuels, acids, hydrocarbons and lubricants
Optional:
Silicone material, food-safe in accordance with the requirements of BfR Silicone XV, FDA 21 CFR 177.2600 & Regulation (EC) 1935/2004, 60° Shore A (-55°C to max. +200°C at max. 6 bar) -LE
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| DN [mm] | 15 |
| Material | C 4400 |
| Inner diameter [mm] | 22 |
| Outer diameter [mm] | 50 |
| Thickness [mm] | 2 |
| Suitable for flanges | PN 10, 16, 25 & 40 |
{{ $t('shop.display.artikel.info') }} FLDR15
| {{ $t('shop.all.gewicht') }} | 5,1 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571302641 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 68159900 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 448) atlas9_seiten/448.pdf
3D CAD file (volume model) protected/cad/3d/73571/fldr15#23786.stp
3D CAD file (volume model) protected/cad/3d/73571/fldr15#23786.stp
