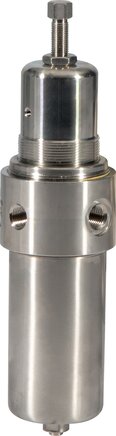

Filter regulator, 1.4404, G 1/2", 0,5 to 8bar (Standard)
{{ $t('shop.all.artikelnummer') }}:
FR 12-8 ES
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
Self-relieving (with secondary vent)
Materials:
Seals: FKM, membrane: NBR (PTFE coated), filter: 1.4401
Temperature range:
-20 to +80 °C
Input pressure:
max. 30 bar
Pore width in the filter:
50 µm
Media:
Oiled and unoiled compressed air, non-toxic gasses
Pressure gauge connection:
G 1/4"
Switch panel thread:
M 45x1,5
Optional:
automatic drain (inlet pressure 2 - 16 bar) -AM
Self-relieving (with secondary vent)
Materials:
Seals: FKM, membrane: NBR (PTFE coated), filter: 1.4401
Temperature range:
-20 to +80 °C
Input pressure:
max. 30 bar
Pore width in the filter:
50 µm
Media:
Oiled and unoiled compressed air, non-toxic gasses
Pressure gauge connection:
G 1/4"
Switch panel thread:
M 45x1,5
Optional:
automatic drain (inlet pressure 2 - 16 bar) -AM
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Standard |
| Material | 1.4404 |
| Thread | G 1/2" |
| Pressure regulation range [bar] | 0,5 - 8 |
| Flow* [l/min] | 3000 |
| Condensate draining | Manually |
| L [mm] | 109 |
| H [mm] | 246 |
| C [mm] | 121 |
| Mounting brackets | WH 14 ES |
| recommended pressure gauge | MW 1063 ES |
{{ $t('shop.display.artikel.info') }} FR12-8ES
| {{ $t('shop.all.gewicht') }} | 2,9 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571305260 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84811005 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 621) atlas9_seiten/621.pdf
Documentation doku/fr_es.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
Declaration of Conformity konf_erkl/atex_erklaerung_fres_la.pdf
3D CAD file (volume model) protected/cad/3d/73548/fr12-8es21617.stp
Documentation doku/fr_es.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
Declaration of Conformity konf_erkl/atex_erklaerung_fres_la.pdf
3D CAD file (volume model) protected/cad/3d/73548/fr12-8es21617.stp
