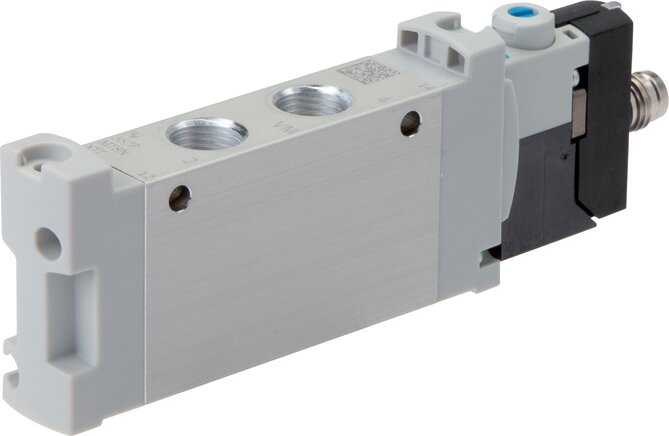

Festo-Magnetventil 8042567 VUVG-LK14-M52-AT-G18-1R8L-S
{{ $t('shop.all.artikelnummer') }}:
VUVG-LK14-M52-18-R8
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Aluminium / plastic, seals: NBR
Temperature range:
-5 to +50 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0,7 W
Protection class:
IP 65 (with rectangular plug H: IP 40)
Switching time:
< 24 ms
Note:
Please order the connection cable fitting the respective connection separately.
Body: Aluminium / plastic, seals: NBR
Temperature range:
-5 to +50 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0,7 W
Protection class:
IP 65 (with rectangular plug H: IP 40)
Switching time:
< 24 ms
Note:
Please order the connection cable fitting the respective connection separately.
{{ $t('shop.display.artikel.eigenschaften_headline') }}

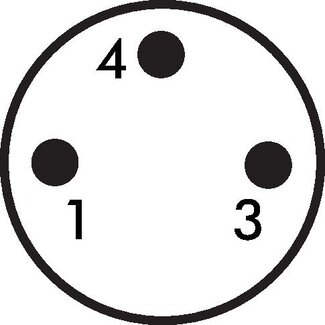

| Version | M 8-plug connector (3-pole) with LED and protective circuit |

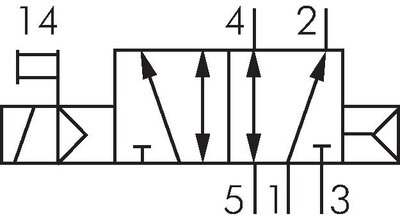

| function | 5/2-way (spring return*) |
| Thread (3x) | G 1/8" |
| Thread exhaust air (2x) | G 1/8" |
| Operating pressure [bar] | 2,5 - 7 |
| flow [l/min] | 660 |
{{ $t('shop.display.artikel.info') }} VUVG-LK14-M52-18-R8
| {{ $t('shop.all.gewicht') }} | 65 g / pcs |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | Festo |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 766) atlas9_seiten/766.pdf
