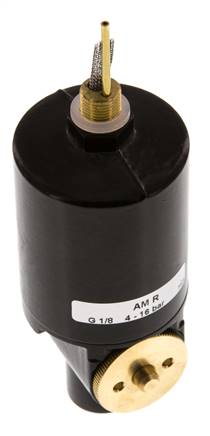

Externally fitted steam trap
{{ $t('shop.all.artikelnummer') }}:
AM R
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and hood: brass (plastic-coated, black), seals: NBR
Temperature range:
0 to +90 °C
Condensate connection:
G 1/4" (female thread)
Note:
Can be directly connected to combination air units. The adapter is required to use the diverter with Futura-, Multifix- or standard maintenance devices (14 mm assembly borehole).
Body and hood: brass (plastic-coated, black), seals: NBR
Temperature range:
0 to +90 °C
Condensate connection:
G 1/4" (female thread)
Note:
Can be directly connected to combination air units. The adapter is required to use the diverter with Futura-, Multifix- or standard maintenance devices (14 mm assembly borehole).
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Steam trap |
| for mounting hole in the container | G 1/8" |
| Operating pressure [bar] | 4 - 16 |
| Adapter for 14 mm mounting hole | AM R-CL |
{{ $t('shop.display.artikel.info') }} AMR
| {{ $t('shop.all.gewicht') }} | 380 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571854294 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84219990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 599) atlas9_seiten/599.pdf
Documentation doku/amr.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/70164/amr#47712.stp
Documentation doku/amr.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/70164/amr#47712.stp
