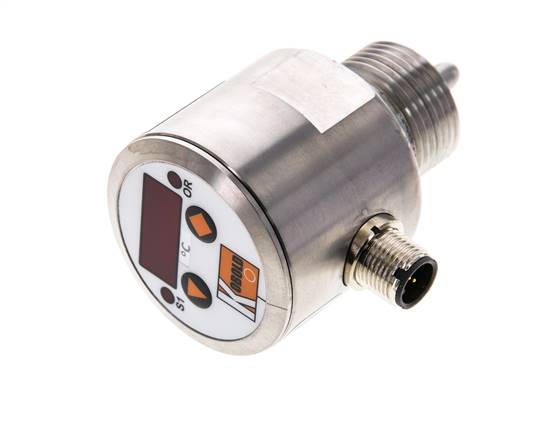

Electronic temperature switch G 3/4"
{{ $t('shop.all.artikelnummer') }}:
TSE 34 ES
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: 1.4404, display: plastic, parts coming in contact with the substance being measured: 1.4404
Display:
3-digit LED display, height of digits 7 mm
Temperature range:
Environment: -20 to +50 °C
Measurement range:
-20 to +120 °C
Protection class:
IP 65
Power supply:
19,2 to 28,8 V (DC)
Power input:
50 mA
Electrical connection:
M12 connector, A-coded, 5-pole (DIN EN 61076-2-101) (Plug)
Control output (PNP):
1 switching output (normally open, normally closed, window and hysteresis freely adjustable), max. 300 mA (DC)
Switching accuracy:
± 0.5°C (between -10°C and +85°C, else: ± 2°C)
Operating pressure at the sensor:
max. 80 bar
Body: 1.4404, display: plastic, parts coming in contact with the substance being measured: 1.4404
Display:
3-digit LED display, height of digits 7 mm
Temperature range:
Environment: -20 to +50 °C
Measurement range:
-20 to +120 °C
Protection class:
IP 65
Power supply:
19,2 to 28,8 V (DC)
Power input:
50 mA
Electrical connection:
M12 connector, A-coded, 5-pole (DIN EN 61076-2-101) (Plug)
Control output (PNP):
1 switching output (normally open, normally closed, window and hysteresis freely adjustable), max. 300 mA (DC)
Switching accuracy:
± 0.5°C (between -10°C and +85°C, else: ± 2°C)
Operating pressure at the sensor:
max. 80 bar
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread | G 3/4" |
| Installation length (sensor including thread) [mm] | 33 |
{{ $t('shop.display.artikel.info') }} TSE34ES
| {{ $t('shop.all.gewicht') }} | 290 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571705640 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 90321080 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 701b) atlas9_seiten/701b.pdf
Documentation doku/tsees.pdf
Documentation doku/tsees.pdf
