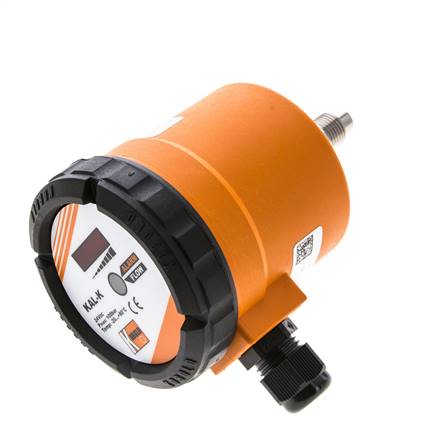

Electron. flow monitor G 1/4", 230 V AC
{{ $t('shop.all.artikelnummer') }}:
SWE 14/230 ES
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
The electronic flow monitor monitors liquid media continuously. Its application can be seen wherever flows need to be monitored with minimal pressure loss. The single-piece version of the measuring pin reduces the sensitivity to contamination to a considerable extent. The electronic flow monitor works as per the calorimetric principle. The front face of the sensor is heated up to a few degrees over the temperature of the flow media. When the medium flows, the heat generated in the sensor is dissipated, i.e. the sensor is cooled. The cooling process is a perfect measure of the speed of flow.
The sensor signal is compared with the reference data stored in the micro-controller. Differences between the desired and actual values of the speed of flow trigger off an output signal.
Materials:
measuring element: 1.4301, housing: glass fibre reinforced polyamide
Temperature range:
-20 to +60 °C (medium: -20 to +80 °C)
Media:
Water and aqueous media
Protection class:
IP 65
Electrical connection:
M 16x1.5 cable gland
Advantages compared with mechanical flow monitors:
•optimum temperature compensation,
•intelligent switch property,
•measuring range adaptation, no moving parts,
•simplest installation, commissioning and operation,
•low pressure loss
Optional:
Material of measuring element: 1.4404 -4A, Electrical connection through an M 12 plug (A-coded, 4-pole, 24 V DC) -M12
Switching range depending on the tube diameter (for water):
DN 8: 0,12 - 6,0 l/min, DN 10: 0,19 - 9,4 l/min, DN 15: 0,42 - 21,8 l/min; DN 20: 0,75 - 37,7 l/min, DN 25: 1,18 - 59 l/min, DN 30: 1,7 - 84,8 l/min, DN 40: 3 - 150 l/min, DN 50: 4,7 - 235 l/min, DN 60: 6,8 - 340 l/min, DN 80: 12 - 603 l/min, DN 100: 18,8 - 942 l/min, DN 150: 42,4 - 2120 l/min
The electronic flow monitor monitors liquid media continuously. Its application can be seen wherever flows need to be monitored with minimal pressure loss. The single-piece version of the measuring pin reduces the sensitivity to contamination to a considerable extent. The electronic flow monitor works as per the calorimetric principle. The front face of the sensor is heated up to a few degrees over the temperature of the flow media. When the medium flows, the heat generated in the sensor is dissipated, i.e. the sensor is cooled. The cooling process is a perfect measure of the speed of flow.
The sensor signal is compared with the reference data stored in the micro-controller. Differences between the desired and actual values of the speed of flow trigger off an output signal.
Materials:
measuring element: 1.4301, housing: glass fibre reinforced polyamide
Temperature range:
-20 to +60 °C (medium: -20 to +80 °C)
Media:
Water and aqueous media
Protection class:
IP 65
Electrical connection:
M 16x1.5 cable gland
Advantages compared with mechanical flow monitors:
•optimum temperature compensation,
•intelligent switch property,
•measuring range adaptation, no moving parts,
•simplest installation, commissioning and operation,
•low pressure loss
Optional:
Material of measuring element: 1.4404 -4A, Electrical connection through an M 12 plug (A-coded, 4-pole, 24 V DC) -M12
Switching range depending on the tube diameter (for water):
DN 8: 0,12 - 6,0 l/min, DN 10: 0,19 - 9,4 l/min, DN 15: 0,42 - 21,8 l/min; DN 20: 0,75 - 37,7 l/min, DN 25: 1,18 - 59 l/min, DN 30: 1,7 - 84,8 l/min, DN 40: 3 - 150 l/min, DN 50: 4,7 - 235 l/min, DN 60: 6,8 - 340 l/min, DN 80: 12 - 603 l/min, DN 100: 18,8 - 942 l/min, DN 150: 42,4 - 2120 l/min
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Standard |
| Thread | G 1/4" |
| Voltage | 230 V AC |
| Type of contact | Relay max. 5 A, |
| approx. Switching range (Water) with nominal diameter of 8 mm [l/min] | 0,12 - 6,0 |
| approx. Switching range (Water) with nominal diameter of 10 mm [l/min] | 0,19 - 9,4 |
| approx. Switching range (Water) with nominal diameter of 15 mm [l/min] | 0,42 - 21,8 |
| approx. Switching range (Water) with nominal diameter of 20 mm [l/min] | 0,75 - 37,7 |
| approx. Switching range (Water) with nominal diameter of 25 mm [l/min] | 1,18 - 59,0 |
| approx. Switching range (Water) with nominal diameter of 30 mm [l/min] | 1,7 - 84,8 |
| approx. Switching range (Water) with nominal diameter of 40 mm [l/min] | 3,0 - 150,0 |
| approx. Switching range (Water) with nominal diameter of 50 mm [l/min] | 4,7 - 235,0 |
| approx. Switching range (Water) with nominal diameter of 60 mm [l/min] | 6,8 - 340,0 |
| approx. Switching range (Water) with nominal diameter of 80 mm [l/min] | 12,0 - 603,0 |
| approx. Switching range (Water) with nominal diameter of 100 mm [l/min] | 18,8 - 942,0 |
| approx. Switching range (Water) with nominal diameter of 150 mm [l/min] | 42,4 - 2120,0 |
{{ $t('shop.display.artikel.info') }} SWE14/230ES
| {{ $t('shop.all.gewicht') }} | 650 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571681524 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 90261029 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 694a) atlas9_seiten/694a.pdf
Documentation doku/swees.pdf
Documentation doku/swees.pdf
