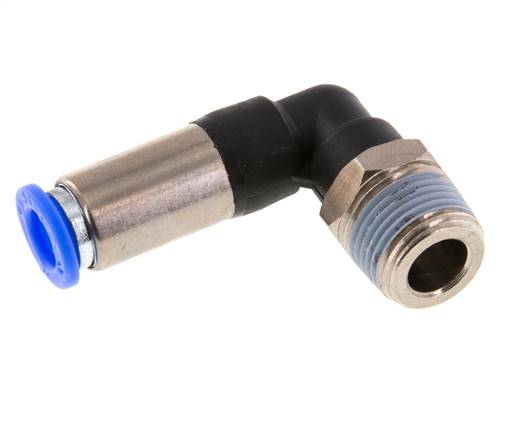

Elbow push in fitting, self-locking R 3/8"-8mm
{{ $t('shop.all.artikelnummer') }}:
IQSKL 388
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass / PBT, seal: NBR, holding claw: stainless steel, cartridge: nickel-plated ZnDC, sleeve: PBT (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 to +60 °C
Operating pressure:
0 to 10 bar
Functional principle:
The fitted lock blocks the airflow the moment the hose is disassembled. After pushing a hose in, the airflow is released again.
Media:
Compressed air, neutral gases
Advantages:
•Cheaper than a coupling,
•Closes like a coupling
Body: nickel-plated brass / PBT, seal: NBR, holding claw: stainless steel, cartridge: nickel-plated ZnDC, sleeve: PBT (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 to +60 °C
Operating pressure:
0 to 10 bar
Functional principle:
The fitted lock blocks the airflow the moment the hose is disassembled. After pushing a hose in, the airflow is released again.
Media:
Compressed air, neutral gases
Advantages:
•Cheaper than a coupling,
•Closes like a coupling
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| R | R 3/8" |
| D [mm] | 8 |
{{ $t('shop.display.artikel.info') }} IQSKL388
| {{ $t('shop.all.gewicht') }} | 47 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571377748 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Sang-A |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 64) atlas9_seiten/64.pdf
3D CAD file (volume model) protected/cad/3d/70709/iqskl388#10687.stp
3D CAD file (volume model) protected/cad/3d/70709/iqskl388#10687.stp
