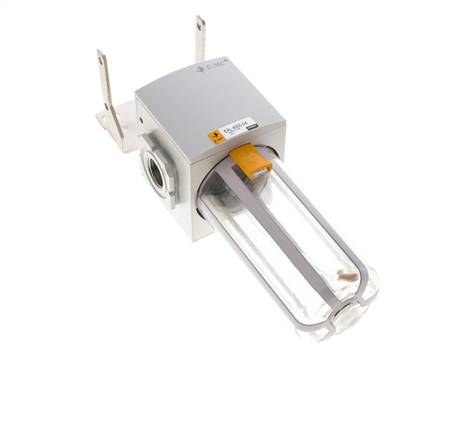

Eco-Line oiler, G 1/2", Plastic container, double-walled
{{ $t('shop.all.artikelnummer') }}:
EAL 4000-04
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Aluminium, gaskets: NBR, container: Polycarbonate
Temperature range:
-5 to +60 °C
Input pressure:
0,5 to 10 bar
Media:
Compressed air, neutral gases
Scope of delivery:
Oiler including mounting bracket
Advantages:
•Simple assembly of individual components of a series by means of coupling packages,
•Filling with oil under pressure possible,
•Fixing bracket included in the scope of delivery,
•Double-walled transparent vessel (not series 2A)
Body: Aluminium, gaskets: NBR, container: Polycarbonate
Temperature range:
-5 to +60 °C
Input pressure:
0,5 to 10 bar
Media:
Compressed air, neutral gases
Scope of delivery:
Oiler including mounting bracket
Advantages:
•Simple assembly of individual components of a series by means of coupling packages,
•Filling with oil under pressure possible,
•Fixing bracket included in the scope of delivery,
•Double-walled transparent vessel (not series 2A)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Model series | Eco-Line 4A |
| Thread | G 1/2" |
| Container design | Plastic container, double-walled |
| flow [l/min] | 42 - 5500 |
| Oil supply [cm³] | 183 |
| Reaction limit (5.1 bar) [l/min] | 42 |

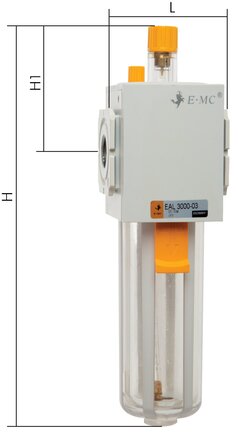

| L [mm] | 80 |
| H [mm] | 217 |
| H1 [mm] | 63 |
| Coupling kit | KP EA4000 |
{{ $t('shop.display.artikel.info') }} EAL4000-04
| {{ $t('shop.all.gewicht') }} | 750 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571924225 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84811005 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 561) atlas9_seiten/561.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/73566/eal4000-04584586.stp
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/73566/eal4000-04584586.stp
