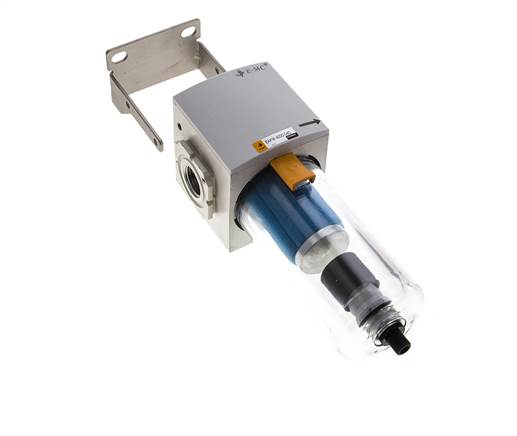

Eco-Line microfilter, G 1/2", drain automatic
{{ $t('shop.all.artikelnummer') }}:
EAFM 4000-04D
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Microfilters are used where high demands are placed on the purity of the compressed air. Fine particles (> 0.3 µm) are separated here. Microfilters are also used to increase the service life of submicrofilters.
Materials:
Body: Aluminium, gaskets: NBR, container: Polycarbonate
Temperature range:
-5 to +60 °C
Input pressure:
1,5 to 10 bar
Condensate draining:
semi-automatic**
Dust removal:
> 0,3 µm (99,99 %)
Media:
Compressed air, neutral gases
Scope of delivery:
Microfilter including mounting bracket
Advantages:
•Simple assembly of individual components of a series by means of coupling packages,
•Fixing bracket included in the scope of delivery,
•Double-walled transparent vessel (not series 2A)
Microfilters are used where high demands are placed on the purity of the compressed air. Fine particles (> 0.3 µm) are separated here. Microfilters are also used to increase the service life of submicrofilters.
Materials:
Body: Aluminium, gaskets: NBR, container: Polycarbonate
Temperature range:
-5 to +60 °C
Input pressure:
1,5 to 10 bar
Condensate draining:
semi-automatic**
Dust removal:
> 0,3 µm (99,99 %)
Media:
Compressed air, neutral gases
Scope of delivery:
Microfilter including mounting bracket
Advantages:
•Simple assembly of individual components of a series by means of coupling packages,
•Fixing bracket included in the scope of delivery,
•Double-walled transparent vessel (not series 2A)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Model series | Eco-Line 4A |
| Thread | G 1/2" |
| Container design | Plastic container, double-walled |
| Condensate drain | automatic |
| Flow* [l/min] | 900 |
| L [mm] | 80 |
| H [mm] | 201 |
| H1 [mm] | 36 |
| Coupling kit | KP EA4000 |
| Replacement filter | EAFM 4000 FIL |
{{ $t('shop.display.artikel.info') }} EAFM4000-04D
| {{ $t('shop.all.gewicht') }} | 850 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571940737 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84811005 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 560a) atlas9_seiten/560a.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/73566/eafm4000-04d732577.stp
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/73566/eafm4000-04d732577.stp
