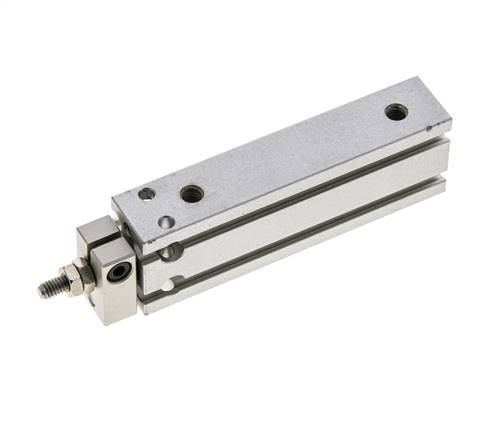

Direct assembly cylinder, Piston 10mm,stroke 40mm, non-rotating piston rod
{{ $t('shop.all.artikelnummer') }}:
EUK 10/40
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Anodized aluminium, piston rod: Stainless steel, Piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 7 bar
Version:
with magnetic piston, piston diameter 6 mm and 10 mm are supplied with two nuts on piston rod
Cylinder switch type:
D
Advantages:
•space saving through square housing, which allows a direct mounting without mounting material
•can be fastened on each of the 6 sides of the square,
•main mounting dimensions identical to SMC series CDU / CDUK
Body: Anodized aluminium, piston rod: Stainless steel, Piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 7 bar
Version:
with magnetic piston, piston diameter 6 mm and 10 mm are supplied with two nuts on piston rod
Cylinder switch type:
D
Advantages:
•space saving through square housing, which allows a direct mounting without mounting material
•can be fastened on each of the 6 sides of the square,
•main mounting dimensions identical to SMC series CDU / CDUK
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Piston diameter [mm] | 10 |
| Stroke [mm] | 40 |
| Version | non-rotating piston rod |
| E (piston rod thread) | M 4 |
| G (compressed air port) | M 5 |
| Repair sets | EU 10 REP |
| A1 [mm] | 36 |
| A3 [mm] | 57 |
| B [mm] | 15 |
| C [mm] | 24 |
| D [mm] | 4 |
| D2 [mm] | 21 |
| E1 [mm] | 10,0 |
| E2 [mm] | 11,0 |
| G1 [mm] | 15,5 |
| G2 [mm] | 10,0 |
| H [mm] | 5.8 (4.5 deep) |
| H1 [mm] | 3,2 |
| H2 [mm] | 11 |
| H3 [mm] | 7 |
| H4 [mm] | 9 |
| J | M 3 |
| J1 [mm] | 18 |
| J2 [mm] | 5 |
| K [mm] | 8 |
| K1 [mm] | 12 |
| K2 [mm] | 13 |
| K3 [mm] | 20,4 |
| K4 [mm] | 11,8 |
{{ $t('shop.display.artikel.info') }} EUK10/40
| {{ $t('shop.all.gewicht') }} | 80 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571872304 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 866) atlas9_seiten/866.pdf
3D CAD file (volume model) protected/cad/3d/73566/euk1040438843.stp
3D CAD file (volume model) protected/cad/3d/73566/euk1040438843.stp
