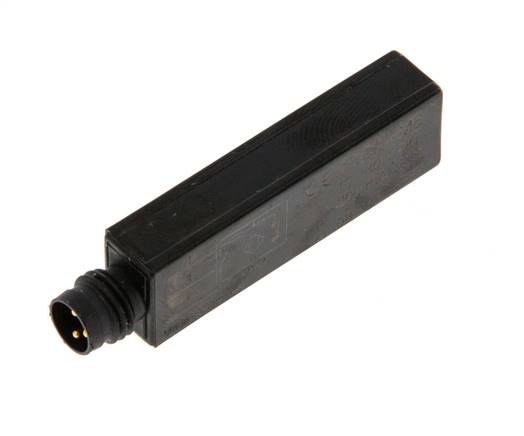

Cylinder switches, fully electronic sensor (reverse polarity protection / short circuit proof), yell
{{ $t('shop.all.artikelnummer') }}:
ZSC 33-M8
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
PEI
Connecting line:
PVC cable
Protection class:
IP 67
Temperature range:
-25 to +75 °C
Note:
The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. The mounting is done by type C1 tension bands or type C2 fixing clamps, which must be ordered as accessories.
Suitable:
For round cylinders & tension anchor cylinders
PEI
Connecting line:
PVC cable
Protection class:
IP 67
Temperature range:
-25 to +75 °C
Note:
The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. The mounting is done by type C1 tension bands or type C2 fixing clamps, which must be ordered as accessories.
Suitable:
For round cylinders & tension anchor cylinders
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | fully electronic sensor (reverse polarity protection / short circuit proof), yellow LED |
| Operating voltage | 10 - 30 V (DC) |
| Switching | NO contact (PNP) |
| Max. switching current [mA] | 200 |
| Max. capacity | 6 W |
| Connecting line | M 8 plug (3-pin) |
{{ $t('shop.display.artikel.info') }} ZSC33-M8
| {{ $t('shop.all.gewicht') }} | 5,6 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571816858 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 886) atlas9_seiten/886.pdf
Documentation: Tips for selecting the right cylinder switch doku/leitfadenzurauswahldesrichtigenzylinderschalters.pdf
3D CAD file (volume model) protected/cad/3d/70165/zsc33-m833458.stp
Documentation: Tips for selecting the right cylinder switch doku/leitfadenzurauswahldesrichtigenzylinderschalters.pdf
3D CAD file (volume model) protected/cad/3d/70165/zsc33-m833458.stp
