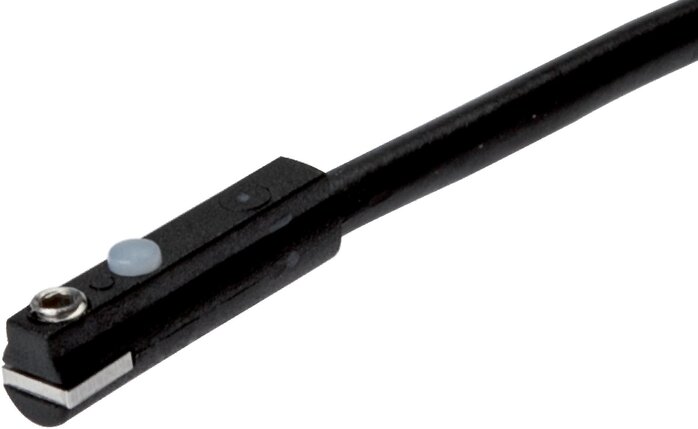

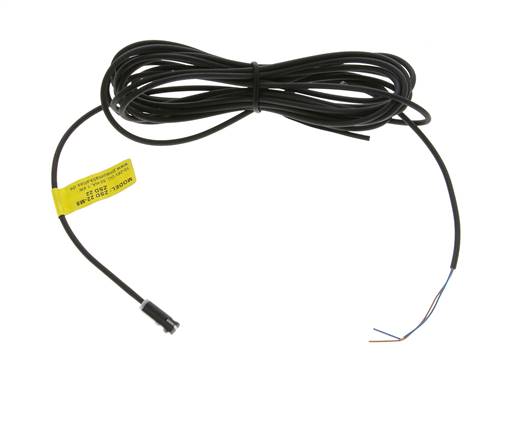

Cylinder switches, 2-wire solid-state sensor, red LED
{{ $t('shop.all.artikelnummer') }}:
ZSD 22
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: plastic, screw: metal
Connecting line:
PUR cable (Reed-switch: PVC-cable)
Protection class:
IP 67
Temperature range:
-10 to +70 °C
Note:
The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. It is mounted by pushing it in the groove of the cylinder and locking it using the threaded rod.
Suitable:
Universal insert for cylinders with continuous C-slot, continuous and non-continuous T-slot (5 mm) and with optional clamping band also for round cylinders Ø 8 - 63 mm.
Advantages:
•no mounting material required for cylinder with C-groove & T-groove (5mm),
•a switch that fits many products of most Asian brands (e.g. SMC),
•with included adapter fits many products of most European brands (e.g. Festo),
•can be used with optional tension tape for round cylinders
Body: plastic, screw: metal
Connecting line:
PUR cable (Reed-switch: PVC-cable)
Protection class:
IP 67
Temperature range:
-10 to +70 °C
Note:
The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. It is mounted by pushing it in the groove of the cylinder and locking it using the threaded rod.
Suitable:
Universal insert for cylinders with continuous C-slot, continuous and non-continuous T-slot (5 mm) and with optional clamping band also for round cylinders Ø 8 - 63 mm.
Advantages:
•no mounting material required for cylinder with C-groove & T-groove (5mm),
•a switch that fits many products of most Asian brands (e.g. SMC),
•with included adapter fits many products of most European brands (e.g. Festo),
•can be used with optional tension tape for round cylinders
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | 2-wire solid-state sensor, red LED |
| Operating voltage | 10 - 28 V (DC) |
| Switching | NO contact |
| Max. switching current [mA] | 50 |
| Max. capacity | 1,4 W |
| Connecting line | 3 m, 2x 0.1 mm² |
{{ $t('shop.display.artikel.info') }} ZSD22
| {{ $t('shop.all.gewicht') }} | 29 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571639709 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 886) atlas9_seiten/886.pdf
Documentation: Tips for selecting the right cylinder switch doku/leitfadenzurauswahldesrichtigenzylinderschalters.pdf
3D CAD file (volume model) protected/cad/3d/73499/zsd22299340.stp
Documentation: Tips for selecting the right cylinder switch doku/leitfadenzurauswahldesrichtigenzylinderschalters.pdf
3D CAD file (volume model) protected/cad/3d/73499/zsd22299340.stp
