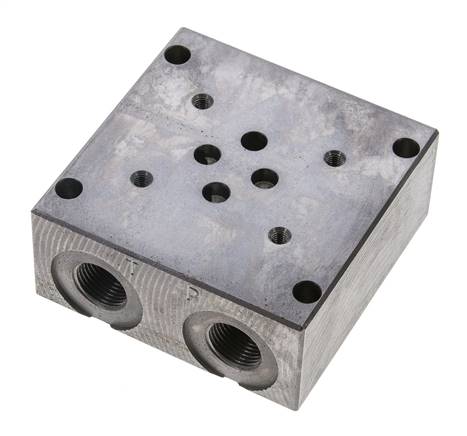

Connection plate NG 6, 1-way
{{ $t('shop.all.artikelnummer') }}:
GRPS 61
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
The connections A & B are positioned lateral to the valve connection surface. Pressure and return flow connections P & T are drilled through and can be optionally used by both the sides. The connection plate can be mounted using either the M 8-female thread on the front side or the mounting holes* positioned longitudinally.
Materials:
Grey cast iron
Temperature range:
-20 to +80 °C
Operating pressure:
max. 315 bar
Nominal flow:
Max. 30 l/min (GRPS 61: max. 50 l/min)
Note:
The connection pattern NG 6 is standardised in accordance with DIN 24340-A6, ISO 4401-03, CETOP R 35 H-03 and NFPA-D03. The valves must be attached with screws of strength class 12.9.
The connections A & B are positioned lateral to the valve connection surface. Pressure and return flow connections P & T are drilled through and can be optionally used by both the sides. The connection plate can be mounted using either the M 8-female thread on the front side or the mounting holes* positioned longitudinally.
Materials:
Grey cast iron
Temperature range:
-20 to +80 °C
Operating pressure:
max. 315 bar
Nominal flow:
Max. 30 l/min (GRPS 61: max. 50 l/min)
Note:
The connection pattern NG 6 is standardised in accordance with DIN 24340-A6, ISO 4401-03, CETOP R 35 H-03 and NFPA-D03. The valves must be attached with screws of strength class 12.9.
{{ $t('shop.display.artikel.eigenschaften_headline') }}

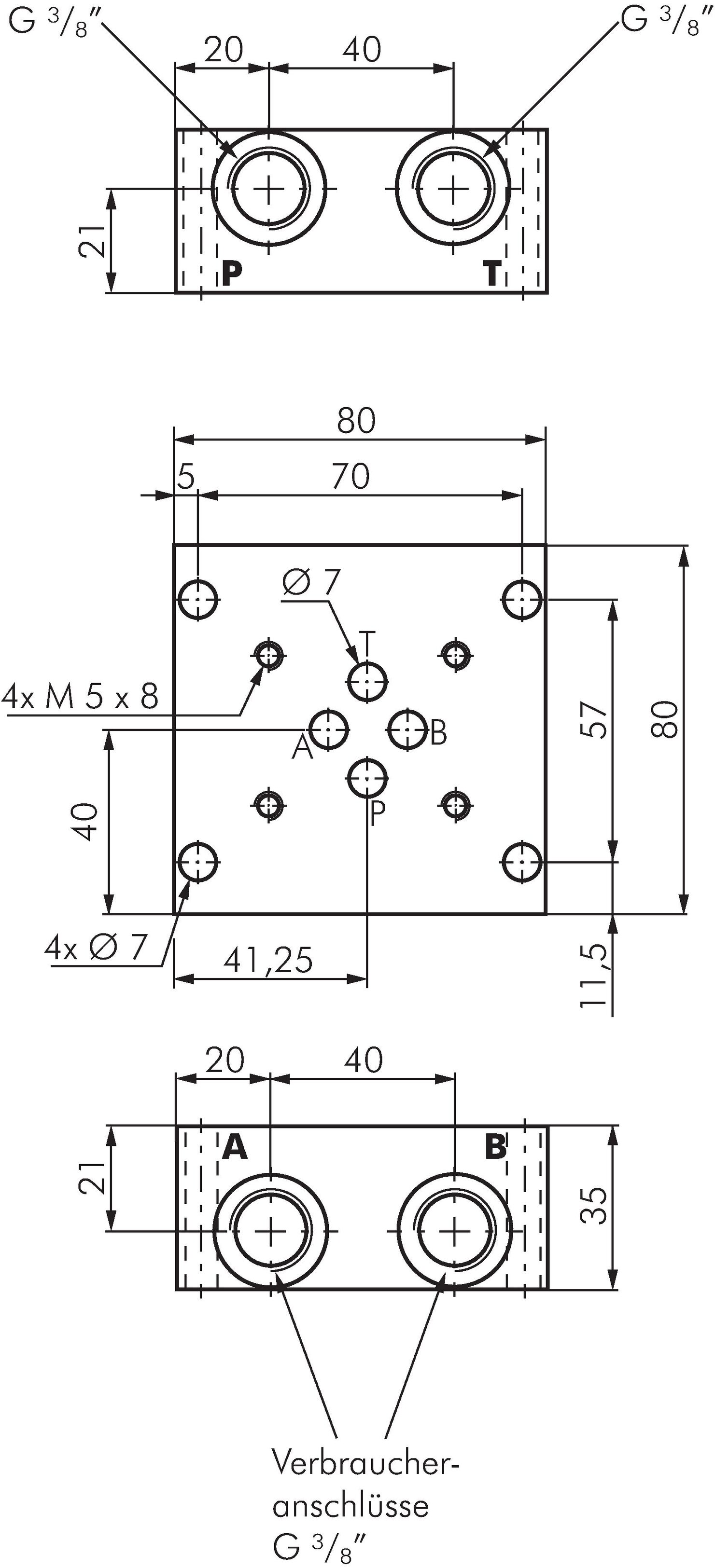

| Connection site [PCE] | 1 |
| Total length L [mm] | 80 |
| Drilling distance LB [mm] | 57 |
{{ $t('shop.display.artikel.info') }} GRPS61
| {{ $t('shop.all.gewicht') }} | 1,4 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571342777 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84819000 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 812_813) atlas9_seiten/812_813.pdf
3D CAD file (volume model) protected/cad/3d/70850/grps61#24339.stp
3D CAD file (volume model) protected/cad/3d/70850/grps61#24339.stp
