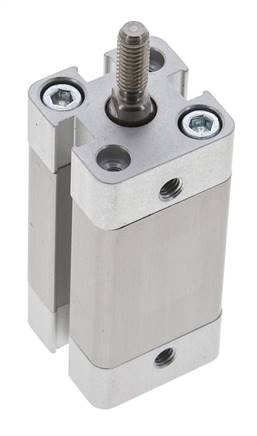

Compact cylinders, single acting, piston 12 mm, stroke 25 mm
{{ $t('shop.all.artikelnummer') }}:
NXE 12/25-AG
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Piston diameter [mm] | 12 |
| Stroke [mm] | 25 |
| Version | Piston rod with male thread |
| G2 (piston rod male thread) | M 6 |
| M (compressed air port) | M 5 |
| Repair sets | NXE 12 REP |
| A [mm] | 29 |
| C [mm] | 6 |
| D [mm] | 3,3 |
| E | M 4 |
| F [mm] | 6,0 |
| J [mm] | 38,0 |
| L [mm] | 0 |
| N [mm] | 8,0 |
| O [mm] | 12,25 |
| P [mm] | 18 |
| Q [mm] | 6 |
| T [mm] | 5 |
| U [mm] | 3,5 |
| V [mm] | 16 |
| Z [mm] | 4,5 |
{{ $t('shop.display.artikel.info') }} NXE12/25-AG
| {{ $t('shop.all.gewicht') }} | 125 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571532055 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 854_855) atlas9_seiten/854_855.pdf
3D CAD file (volume model) protected/cad/3d/70001/nxe1225-ag#251136.stp
3D CAD file (volume model) protected/cad/3d/70001/nxe1225-ag#251136.stp
