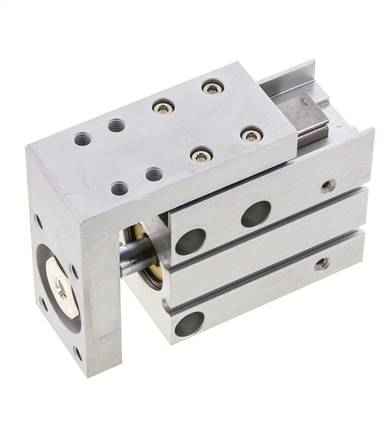

Compact carriage, piston 20mm,stroke 10mm
{{ $t('shop.all.artikelnummer') }}:
EXH 20/10
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and plate: Anodized aluminium, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +70 °C
Operating pressure:
max. 7 bar
Permitted kinetic energy:
Ø 6: 12.5 mJ, Ø 10: 25 mJ, Ø 16: 50 mJ, Ø 20: 100mJ
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•high stiffness,
•compressed air connection possible from three sides,
•numerous mounting options,
•main mounting dimensions identical to SMC series MXH
Body and plate: Anodized aluminium, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +70 °C
Operating pressure:
max. 7 bar
Permitted kinetic energy:
Ø 6: 12.5 mJ, Ø 10: 25 mJ, Ø 16: 50 mJ, Ø 20: 100mJ
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•high stiffness,
•compressed air connection possible from three sides,
•numerous mounting options,
•main mounting dimensions identical to SMC series MXH
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Piston diameter [mm] | 20 |
| Stroke [mm] | 10 |
| Version | Compact sled |
| P (compressed air port) | M 5 |
| Repair sets | EXH 20 REP |
| A [mm] | 10 |
| B [mm] | 15 |
| C [mm] | 20 |
| D [mm] | 14,0 |
| E [mm] | 6 |
| F [mm] | 52,5 |
| G [mm] | 68,0 |
| H [mm] | 11,0 |
| I [mm] | 6,0 |
| J [mm] | 4x |
| K [mm] | 34 |
| L [mm] | 7,0 |
| LA [mm] | 10 |
| LT [mm] | 64 |
| M [mm] | 32 |
| N [mm] | 54,0 |
| NS [mm] | 20 |
| O [mm] | 9,5 |
| P1 | M 5 |
| P2 | M 5 |
| P3 | M 5 |
| P4 | M 6 |
| P5 [mm] | 9.3 (8.0 deep) |
| P6 [mm] | 5,1 |
| Q1 [mm] | 32 |
| Q2 [mm] | 64,5 |
| R1 [mm] | 20 |
| R2 [mm] | 34 |
| S [mm] | 63,5 |
| S1 [mm] | 8 |
| S2 [mm] | 11,0 |
| S3 [mm] | 9,5 |
| T [mm] | 24,5 |
| U [mm] | 20,0 |
| V [mm] | 6,0 |
| W [mm] | 34 |
| X [mm] | 14 |
| Y [mm] | 31 |
| Z [mm] | 20 |
{{ $t('shop.display.artikel.info') }} EXH20/10
| {{ $t('shop.all.gewicht') }} | 440 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571871444 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 873) atlas9_seiten/873.pdf
3D CAD file (volume model) protected/cad/3d/73566/exh2010438764.stp
3D CAD file (volume model) protected/cad/3d/73566/exh2010438764.stp
