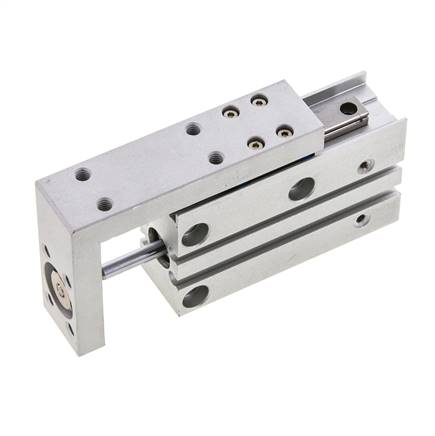

Compact carriage, piston 10mm,stroke 30mm
{{ $t('shop.all.artikelnummer') }}:
EXH 10/30
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and plate: Anodized aluminium, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +70 °C
Operating pressure:
max. 7 bar
Permitted kinetic energy:
Ø 6: 12.5 mJ, Ø 10: 25 mJ, Ø 16: 50 mJ, Ø 20: 100mJ
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•high stiffness,
•compressed air connection possible from three sides,
•numerous mounting options,
•main mounting dimensions identical to SMC series MXH
Body and plate: Anodized aluminium, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +70 °C
Operating pressure:
max. 7 bar
Permitted kinetic energy:
Ø 6: 12.5 mJ, Ø 10: 25 mJ, Ø 16: 50 mJ, Ø 20: 100mJ
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•high stiffness,
•compressed air connection possible from three sides,
•numerous mounting options,
•main mounting dimensions identical to SMC series MXH
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Piston diameter [mm] | 10 |
| Stroke [mm] | 30 |
| Version | Compact sled |
| P (compressed air port) | M 5 |
| Repair sets | EXH 10 REP |
| A [mm] | 5 |
| B [mm] | 12 |
| C [mm] | 13 |
| D [mm] | 11,5 |
| E [mm] | 5 |
| F [mm] | 35,0 |
| G [mm] | 46,5 |
| H [mm] | 7,5 |
| I [mm] | 5,0 |
| J [mm] | 4x |
| K [mm] | 23 |
| L [mm] | 6,5 |
| LA [mm] | 30 |
| LT [mm] | 69 |
| M [mm] | 20 |
| N [mm] | 38,0 |
| NS [mm] | 30 |
| O [mm] | 8,0 |
| P1 | M 4 |
| P2 | M 4 |
| P3 | M 4 |
| P4 | M 5 |
| P5 [mm] | 7.5 (4.4 deep) |
| P6 [mm] | 4,3 |
| Q1 [mm] | 20 |
| Q2 [mm] | 47,0 |
| R1 [mm] | 11 |
| R2 [mm] | 18 |
| S [mm] | 46,0 |
| S1 [mm] | 6 |
| S2 [mm] | 7,5 |
| S3 [mm] | 8,0 |
| T [mm] | 21,5 |
| U [mm] | 13,0 |
| V [mm] | 5,0 |
| W [mm] | 23 |
| X [mm] | 11 |
| Y [mm] | 19 |
| Z [mm] | 11 |
{{ $t('shop.display.artikel.info') }} EXH10/30
| {{ $t('shop.all.gewicht') }} | 175 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571871307 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 873) atlas9_seiten/873.pdf
3D CAD file (volume model) protected/cad/3d/73566/exh1030438750.stp
