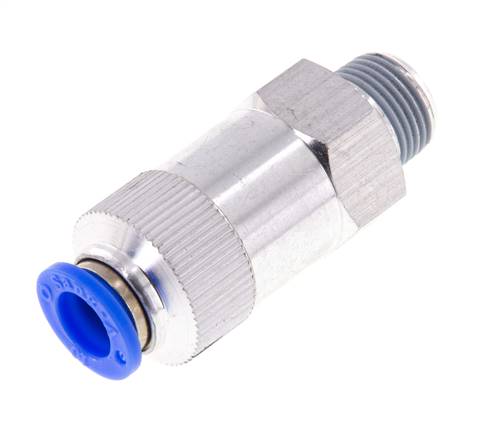

check valves R 3/8"-10mm, Flow from the hose to the thread, IQS standard
{{ $t('shop.all.artikelnummer') }}:
HBIQS 3810 *
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass / PBT / aluminium, valve: aluminium, seal: NBR, holding claws: stainless steel, cartridge: Nickel-plated ZnDC, sleeve PBT (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 to +60 °C
Operating pressure:
-0,95 to 10 bar
Opening pressure:
max. 0,2 bar
Functional principle:
The check valves prevent a backflow of the airflow
Media:
Compressed air, neutral gases
Advantages:
•Very compact design,
•Reasonable price
Body: nickel-plated brass / PBT / aluminium, valve: aluminium, seal: NBR, holding claws: stainless steel, cartridge: Nickel-plated ZnDC, sleeve PBT (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 to +60 °C
Operating pressure:
-0,95 to 10 bar
Opening pressure:
max. 0,2 bar
Functional principle:
The check valves prevent a backflow of the airflow
Media:
Compressed air, neutral gases
Advantages:
•Very compact design,
•Reasonable price
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Flow from the hose to the thread |
| R | R 3/8" |
| D [mm] | 10 |
{{ $t('shop.display.artikel.info') }} HBIQS3810
| {{ $t('shop.all.gewicht') }} | 41 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571351687 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Sang-A |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 65) atlas9_seiten/65.pdf
3D CAD file (volume model) protected/cad/3d/70709/hbiqs38106164.stp
3D CAD file (volume model) protected/cad/3d/70709/hbiqs38106164.stp
