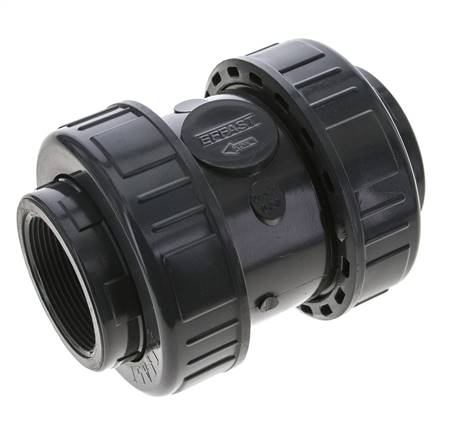

Check valve, PVC-U/ FKM, Rp 2"

Item number:

RUCK 20 PVCFKM

€187.77 incl. VAT
pcs
Item description
Materials:
Body: PVC-U, spring: 1.4310

Temperature range:
0 to +60 °C

Opening pressure:
max. 0,012 bar

Advantages:
•can be radially assembled or disassembled,
•optimum flow properties


Special quality features:
Check valve, 100% tested

Note:
•Do not use any thread sealing agent that damages PVC-U, only for plastic thread

Warning:
Not suitable for compressed air or other gases under pressure!
Properties
Seals FKM
Female thread G Rp 2"
L [mm] 150
Flow* [l/min] 1007
PN [bar] 0 - 16
Z [mm] 99
Further information on RUCK20PVCFKM
Weight 1 kg / pcs
GTIN 4050571607609
Customs duty number 84813099
RoHS compliant Yes
Documents
*applies to water and 1 bar pressure drop


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
