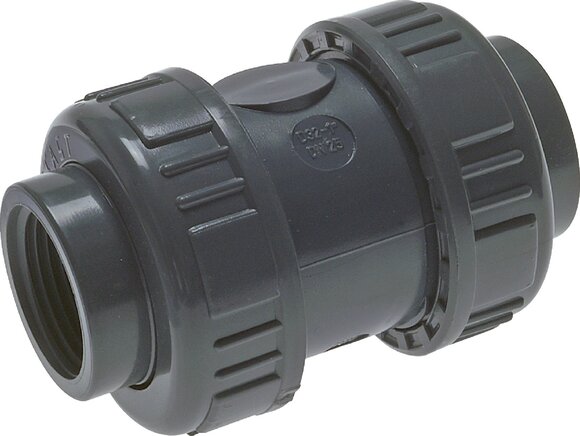

Check valve, PVC-U/ FKM, Rp 1"
{{ $t('shop.all.artikelnummer') }}:
RUCK 10 PVCFKM
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: PVC-U, spring: 1.4310
Temperature range:
0 to +60 °C
Opening pressure:
max. 0,012 bar
Advantages:
•can be radially assembled or disassembled,
•optimum flow properties
Special quality features:
Check valve, 100% tested
Note:
•Do not use any thread sealing agent that damages PVC-U, only for plastic thread
Warning:
Not suitable for compressed air or other gases under pressure!
Body: PVC-U, spring: 1.4310
Temperature range:
0 to +60 °C
Opening pressure:
max. 0,012 bar
Advantages:
•can be radially assembled or disassembled,
•optimum flow properties
Special quality features:
Check valve, 100% tested
Note:
•Do not use any thread sealing agent that damages PVC-U, only for plastic thread
Warning:
Not suitable for compressed air or other gases under pressure!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Seals | FKM |
| Female thread G | Rp 1" |
| L [mm] | 106 |
| Flow* [l/min] | 325 |
| PN [bar] | 0 - 16 |
| Z [mm] | 67 |
{{ $t('shop.display.artikel.info') }} RUCK10PVCFKM
| {{ $t('shop.all.gewicht') }} | 260 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571606237 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84813099 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 526) atlas9_seiten/526.pdf
3D CAD file (volume model) protected/cad/3d/73359/ruck10pvcfkm68400.stp
3D CAD file (volume model) protected/cad/3d/73359/ruck10pvcfkm68400.stp
