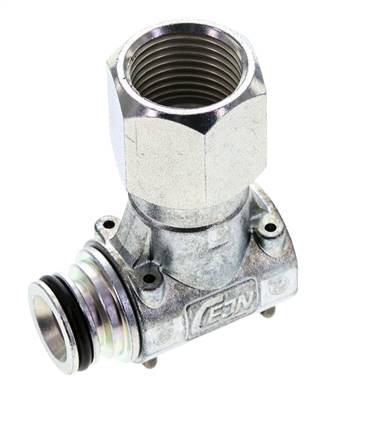

CEJN Multilink Expansion segment with G 1/2" female thread, Expansion segments
{{ $t('shop.all.artikelnummer') }}:
MLIG REP
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
Compressed air distribution system assembled completely with individually pivotable standard couplings NW 7.2. An optional thread step (G 1/2") that can be assembled for interlinking several blocks is included in the scope of supply.
Materials:
Bodies: Zinc plated steel, zinc, seal: NBR
Temperature range:
-20°C to max. +100°C (Safety coupling max. +80°C)
Operating pressure:
0 to 16 bar
Media:
Compressed air
Compressed air distribution system assembled completely with individually pivotable standard couplings NW 7.2. An optional thread step (G 1/2") that can be assembled for interlinking several blocks is included in the scope of supply.
Materials:
Bodies: Zinc plated steel, zinc, seal: NBR
Temperature range:
-20°C to max. +100°C (Safety coupling max. +80°C)
Operating pressure:
0 to 16 bar
Media:
Compressed air
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Expansion segments |
| Description | Expansion segment with G 1/2" female thread |
| Female thread | G 1/2" |
| Temperature range [°C] | -20 to +100 |
{{ $t('shop.display.artikel.info') }} MLIGREP
| {{ $t('shop.all.gewicht') }} | 145 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571492649 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | Cejn |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 293) atlas9_seiten/293.pdf
Documentation doku/sicherheitskupplungen.pdf
Documentation doku/sicherheitskupplungen.pdf
