Cable with M8 coupling, 3-wire, 3 m, angled
{{ $t('shop.all.artikelnummer') }}:
KAB M8 3 W
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
Pre-assembled connection cables with 3-pin M 8 socket (M 8x1 female thread to DIN EN 61076-2-104) on one end and 3 loose cable ends on the other.
Temperature range:
-25 to +90 °C
Voltage:
max. 60 V AC/DC, max. 3 A
Protection class:
IP 67
Cable:
PUR cable, 3x 0.34 mm² (only for static applications)
Cable layout:

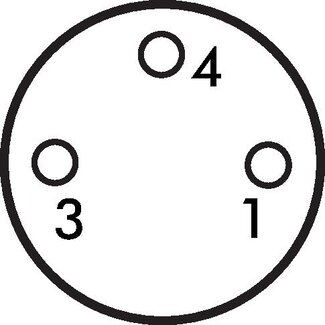

Pin 1 - brown, Pin 3 - blue, Pin 4 - black
Suitable:
These cables are used preferentially for the connection of cylinder switches, inductive proximity switches or solenoid valves. Warning! They are not compatible with the (e.g. used frequently for light barriers) 4-pin M8 cable connectors.
Pre-assembled connection cables with 3-pin M 8 socket (M 8x1 female thread to DIN EN 61076-2-104) on one end and 3 loose cable ends on the other.
Temperature range:
-25 to +90 °C
Voltage:
max. 60 V AC/DC, max. 3 A
Protection class:
IP 67
Cable:
PUR cable, 3x 0.34 mm² (only for static applications)
Cable layout:
Pin 1 - brown, Pin 3 - blue, Pin 4 - black
Suitable:
These cables are used preferentially for the connection of cylinder switches, inductive proximity switches or solenoid valves. Warning! They are not compatible with the (e.g. used frequently for light barriers) 4-pin M8 cable connectors.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Design | angled |
| Cable length [MTR] | 3 |
{{ $t('shop.display.artikel.info') }} KABM83W
| {{ $t('shop.all.gewicht') }} | 75 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571885281 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85369010 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 893) atlas9_seiten/893.pdf
