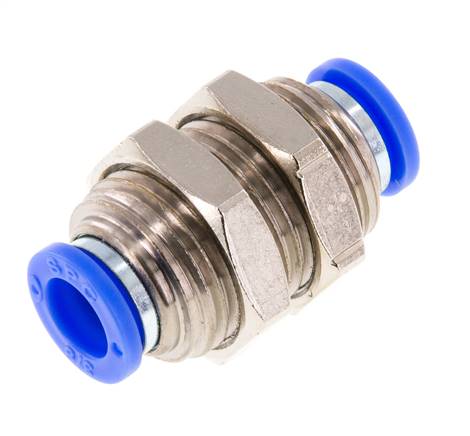

Bulkhead push in fitting 3/8" (9,52 mm), IQS-Inch
{{ $t('shop.all.artikelnummer') }}:
IQSS 3/8 *
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass / PBT, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 to +60 °C
Operating pressure:
-0,95 to 10 bar
Media:
oiled and unoiled compressed air, neutral gases and water (may be used only after we approve the performance specifications)
Body: nickel-plated brass / PBT, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 to +60 °C
Operating pressure:
-0,95 to 10 bar
Media:
oiled and unoiled compressed air, neutral gases and water (may be used only after we approve the performance specifications)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| D [mm] | 3/8" (9,52 mm) |
| A | UNF 7/8" |
| Emax [mm] | 12 |
{{ $t('shop.display.artikel.info') }} IQSS3/8
| {{ $t('shop.all.gewicht') }} | 70 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571384821 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Sang-A |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 91) atlas9_seiten/91.pdf
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
3D CAD file (volume model) protected/cad/3d/70709/iqss3848261.stp
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
3D CAD file (volume model) protected/cad/3d/70709/iqss3848261.stp
{{ $t('shop.all.unverbindliche_richtwerte') }}
Accessories
