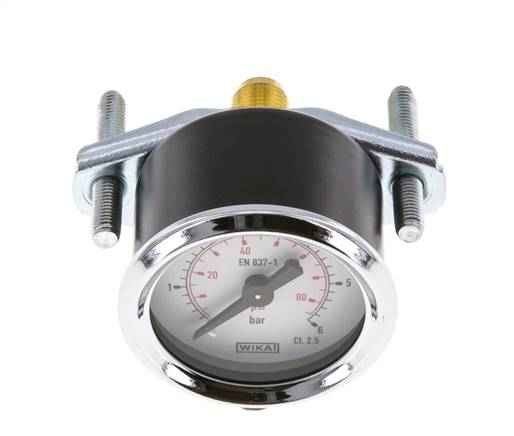

Built-in pressure gauge, 3-corner front ring, 40mm, 0 to 6 bar
{{ $t('shop.all.artikelnummer') }}:
MFRE 640
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Housing: black steel, front ring: chromium-plated steel, measuring system: Cu alloy, (pressures >= 100 bar: 1.4404), connection: brass, window: transparent plastic, mounting bracket: galvanised steel, rear side
Connection thread:
G 1/4" * (Ø 40: G 1/8" or G 1/4" *), centred on the rear side
Class:
2,5
Temperature range:
-20 to +60 °C
Dial:
1. External scale (black), display in bar, 2. Internal scale (red), display in PSI (Ø 40 with G 1/4" connection thread: display in bar)
Protection class:
IP 42
Note:
WIKA Type 111.12
Optional:
ISO factory calibration (following DIN EN 837-1, determination of measurement deviation and hysteresis), DAkkS-DKD calibration (in accordance with DKD-R 6-1, traceable and accredited in accordance with DIN EN ISO/IEC 17025, decision rule 4)
Housing: black steel, front ring: chromium-plated steel, measuring system: Cu alloy, (pressures >= 100 bar: 1.4404), connection: brass, window: transparent plastic, mounting bracket: galvanised steel, rear side
Connection thread:
G 1/4" * (Ø 40: G 1/8" or G 1/4" *), centred on the rear side
Class:
2,5
Temperature range:
-20 to +60 °C
Dial:
1. External scale (black), display in bar, 2. Internal scale (red), display in PSI (Ø 40 with G 1/4" connection thread: display in bar)
Protection class:
IP 42
Note:
WIKA Type 111.12
Optional:
ISO factory calibration (following DIN EN 837-1, determination of measurement deviation and hysteresis), DAkkS-DKD calibration (in accordance with DKD-R 6-1, traceable and accredited in accordance with DIN EN ISO/IEC 17025, decision rule 4)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Diameter [mm] | 40 |
| Display range [bar] | 0 - 6 |
| Connection thread | G 1/8" |
| Scale division [bar] | 0,2 |
{{ $t('shop.display.artikel.info') }} MFRE640
| {{ $t('shop.all.gewicht') }} | 115 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571491512 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 90262040 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | WIKA (WEEE DE92770372) |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 664) atlas9_seiten/664.pdf
Documentation doku/mse.pdf
Documentation: Tips for selecting the right pressure gauges doku/tippszurauswahldesrichtigenmanometers.pdf
3D CAD file (volume model) protected/cad/3d/70881/mfre640#25652.stp
Documentation doku/mse.pdf
Documentation: Tips for selecting the right pressure gauges doku/tippszurauswahldesrichtigenmanometers.pdf
3D CAD file (volume model) protected/cad/3d/70881/mfre640#25652.stp
