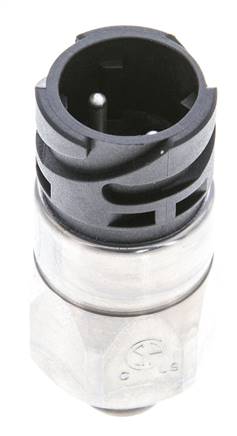

Bayonet pressure switch 10 to 20 bar (Closer (NO)), G 1/4"
{{ $t('shop.all.artikelnummer') }}:
DRSIPS 20
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: zinc plated steel, seals / diaphragms: NBR
Temperature range:
-25 to +85 °C
Switch-back difference (hysteresis)
15 - 25 % of the value that has been set
Protection class:
IP 67
Electrical connection:
Bayonet coupling DIN 72585 / ISO 15170 (contact size 2.5 mm, 4-pole)
Media:
Hydraulic oil, machine oil, heating oil, air, water (only type DRSIP)
Advantages:
•ideal for outdoor use in construction or farm equipment, as a protection class of IP 67 is achieved through the use of bayonet couplings.
Body: zinc plated steel, seals / diaphragms: NBR
Temperature range:
-25 to +85 °C
Switch-back difference (hysteresis)
15 - 25 % of the value that has been set
Protection class:
IP 67
Electrical connection:
Bayonet coupling DIN 72585 / ISO 15170 (contact size 2.5 mm, 4-pole)
Media:
Hydraulic oil, machine oil, heating oil, air, water (only type DRSIP)
Advantages:
•ideal for outdoor use in construction or farm equipment, as a protection class of IP 67 is achieved through the use of bayonet couplings.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Pressure switches |
| Switch type | NO contact |
| Setting range [bar] | 10 - 20 |
| External thread | G 1/4" |
| Safe at overpressure up to [bar] | 300 |
| Switch capacity | 42 V / 100 VA |
| Operating voltage | 0 - 42 V (AC/DC) |
| Connector (straight) | DRSIP STECKDOSE |
| Connector (angled) | DRSIP STECKDOSE 90 |
{{ $t('shop.display.artikel.info') }} DRSIPS20
| {{ $t('shop.all.gewicht') }} | 75 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571272982 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 90268080 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 687) atlas9_seiten/687.pdf
Documentation doku/drs.pdf
3D CAD file (volume model) protected/cad/3d/70723/drsips20142342.stp
Documentation doku/drs.pdf
3D CAD file (volume model) protected/cad/3d/70723/drsips20142342.stp
