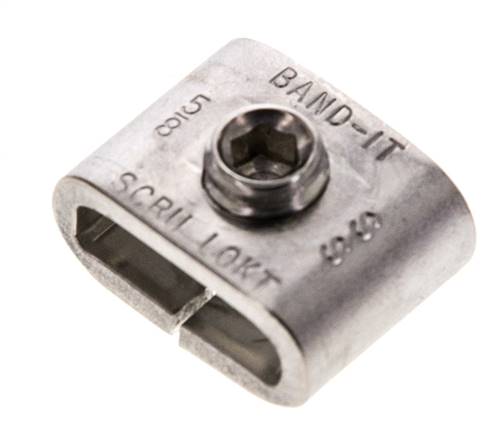

Band-It Scru-Lokt buckles 201, 15,9 (5/8")mm

C725

Exemplary representation: Band-It screw loop Application examples: Band-It screw loop
7,51€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Band-It - assembly example:


step 1:
Pull the buckle with ears to the tape end on the tape. Form clamps and place tape on tape. Pull the buckle over both tapes and bend the tape end approx. 30 mm under the buckle. When there are high loads on the clamps (e.g. for hose assembly) pull the tape twice through the buckle.

step 2:
Insert tape in the clamping tool from the side, press on the cam lever and tighten the crank clamps by rotating them. The maximum tension is reached when the tape can no longer be pulled under the buckle (this is easily "fulfilled" by applying a finger).

step 3:
After reaching the required tension, bend the tool slowly over the buckle. At the same time, loosen the crank by approx. a half rotation in order to prevent loss of tension and cracks in the tape. In order to crop the tape, pull the cutting lever backwards.

step 4:
Hit the tape onto the buckle with the hammer and fold both buckle ears over to secure the tape end.

Application:
for manufacturing clips that can be re-tightened, in conjunction with Band-It strap 201

Assembly tool:
C001, C003

Assembly:
As for Band-It strap 201, but the strap is not bent after clamping, but fixed with a hexagon socket screw. About 100 mm strap must still project behind the loop to allow for later re-tightening.

Warning:
Avoid injuries caused by folding the end of the loop!

Materials:
rust-free stainless steel AISI 201 (1.4372)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Width [mm] 15,9 (5/8")
Packing unit [PCE] 25
C725
{{ $t('shop.all.gewicht') }} 15 g / pcs
{{ $t('shop.all.gtin') }} 4050571907761
{{ $t('shop.display.artikel.verpackungseinheit') }} 25 pcs
{{ $t('shop.display.artikel.zollwarennummer') }} 73269098
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} Band-It
