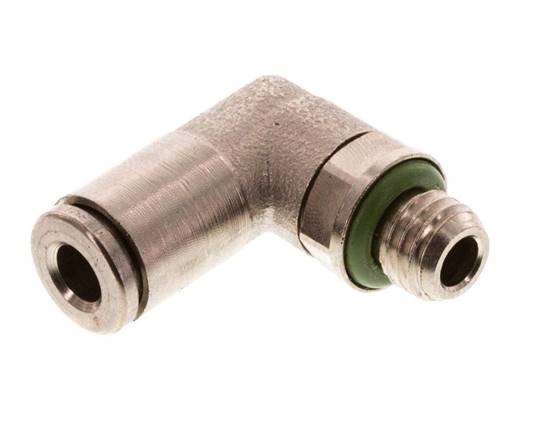

Angle push in fitting M 7-4mm, IQS-MSV (High temperature)
{{ $t('shop.all.artikelnummer') }}:
IQSL M74 MSV-V
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and sleeve: Nickel-plated brass, seals: NBR (High temperature version: FKM), holding claws: Stainless steel (only silicone-free seals and lubricants are used during assembly!)
Temperature range:
-20°C up to max. +80°C (high temperature version: -20°C up to max. +150°C)
Operating pressure:
-0,98 to 16 bar
Media:
oiled and unoiled compressed air, neutral and non-hazardous gasses
Advantages:
•wide range of products,
•stable design thanks to all-metal construction,
•also available with M 7, M 8x1, M 10x1 and M 12x1.5 threads,
•cylindrical screw-in threads sealed by chambered O-ring
Body and sleeve: Nickel-plated brass, seals: NBR (High temperature version: FKM), holding claws: Stainless steel (only silicone-free seals and lubricants are used during assembly!)
Temperature range:
-20°C up to max. +80°C (high temperature version: -20°C up to max. +150°C)
Operating pressure:
-0,98 to 16 bar
Media:
oiled and unoiled compressed air, neutral and non-hazardous gasses
Advantages:
•wide range of products,
•stable design thanks to all-metal construction,
•also available with M 7, M 8x1, M 10x1 and M 12x1.5 threads,
•cylindrical screw-in threads sealed by chambered O-ring
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | High temperature |
| G | M 7 |
| D [mm] | 4 |
| Temperature range [°C] | -20 to +150 |
{{ $t('shop.display.artikel.info') }} IQSLM74MSV-V
| {{ $t('shop.all.gewicht') }} | 12 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571859534 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 75) atlas9_seiten/75.pdf
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
3D CAD file (volume model) protected/cad/3d/70363/iqslm74msv-v437411.stp
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
3D CAD file (volume model) protected/cad/3d/70363/iqslm74msv-v437411.stp
