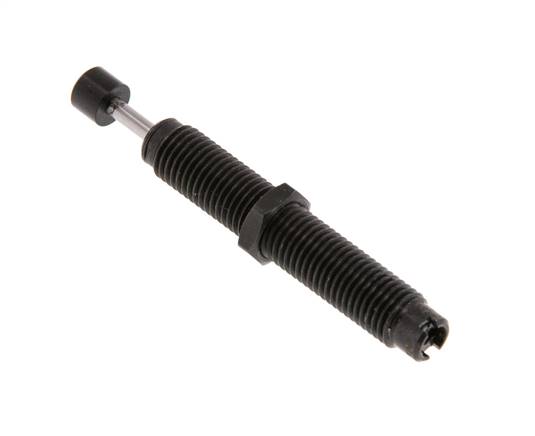

ACE shock absorber, M 8x1, adjustable, stroke 8 mm
{{ $t('shop.all.artikelnummer') }}:
MA 30 EUM
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel
Temperature range:
0 to +66 °C
Stroke speed:
0,15 to 4,5 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4 (max. energy consumed per hour expressed in Nm/h) is possible in the case of temporary switch-off, or when the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating).
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel
Temperature range:
0 to +66 °C
Stroke speed:
0,15 to 4,5 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4 (max. energy consumed per hour expressed in Nm/h) is possible in the case of temporary switch-off, or when the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating).
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread B | M 8x1 |
| Stroke [mm] | 8 |
| max. Energy consumption per stroke (W3) [Nm] | 3,5 |
| max. Energy consumption per hour (W4) [Nm] | 5650 |
| effective mass (me) adjustable [KGM] | 0,23 - 15 |
| Spring force [N] | 1,7 - 5,3 |
| A [mm] | 4,1 |
| D [mm] | 48,3 |
| E [mm] | 3 |
| G [mm] | 2,5 |
| I [mm] | 13,1 |
| J [mm] | 2,1 |
| K [mm] | 6,4 |
| SW2 [mm] | 10 |
| Max. axial deviation* [°] | 2 |
| clamping flange | MB 8 SC2 |
| Stop sleeve | AH 8 |
| Side load adapter** | BV 8 |
| Locking nut | KM 8 |
{{ $t('shop.display.artikel.info') }} MA30EUM
| {{ $t('shop.all.gewicht') }} | 13 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571479312 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84879059 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | ACE |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 899_900) atlas9_seiten/899_900.pdf
{{ $t('shop.all.unverbindliche_richtwerte') }}
