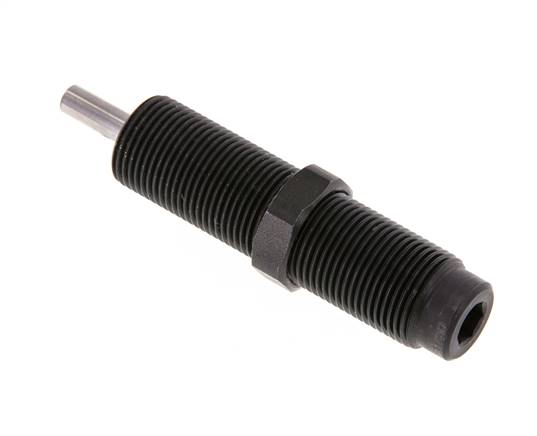

ACE shock absorber, M 20x1,5, self-adjusting, stroke 12,7 mm
{{ $t('shop.all.artikelnummer') }}:
MC 225 EUMH
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, stainless steel, roller type diaphragm: ethylene-propylene
Temperature range:
0 to +66 °C
Stroke speed:
0,06 to 6 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
shock absorber body and accessory: Steel bronzing, piston rod: hardened, stainless steel, roller type diaphragm: ethylene-propylene
Temperature range:
0 to +66 °C
Stroke speed:
0,06 to 6 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread B | M 20x1,5 |
| Stroke [mm] | 12,7 |
| max. Energy consumption per stroke (W3) [Nm] | 41 |
| max. Energy consumption per hour (W4) [Nm] | 45000 |
| effective mass (me) [KGM] | 23 - 230 |
| Spring force [N] | 4 - 9 |
| A [mm] | 7,2 |
| C [mm] | 79,2 |
| E [mm] | 8 |
| G [mm] | 6,3 |
| I [mm] | 17,5 |
| SW1 [mm] | 8 |
| SW2 [mm] | 23 |
| Max. axial deviation* [°] | 4 |
| Impact head | PP 225 |
| clamping flange | MB 20 |
| Stop sleeve | AH 20 |
| Side load adapter** | BV 20 |
| Locking nut | KM 20 |
{{ $t('shop.display.artikel.info') }} MC225EUMH
| {{ $t('shop.all.gewicht') }} | 125 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571481247 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84879059 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | ACE |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 899_900) atlas9_seiten/899_900.pdf
