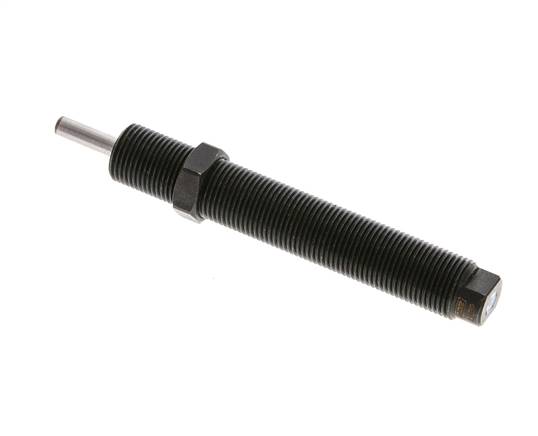

ACE shock absorber, M 12x1, self-adjusting, stroke 10 mm
{{ $t('shop.all.artikelnummer') }}:
SC 75 EUM7 **
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel (type SC 45...: steel hard chrome plated)
Temperature range:
0°C to max. +66°C (SC 45...: -12°C to max. +66°C)
Stroke speed:
0,15 up to 3,7 m/s (Type SC²: 0,1 up to 5,7 m/s, Type SC 45...: 0,02 up to 0,46 m/s)
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel (type SC 45...: steel hard chrome plated)
Temperature range:
0°C to max. +66°C (SC 45...: -12°C to max. +66°C)
Stroke speed:
0,15 up to 3,7 m/s (Type SC²: 0,1 up to 5,7 m/s, Type SC 45...: 0,02 up to 0,46 m/s)
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread B | M 12x1 |
| Stroke [mm] | 10 |
| max. Energy consumption per stroke (W3) [Nm] | 16 |
| max. Energy consumption per hour (W4) [Nm] | 30000 |
| effective mass (me) [KGM] | 75 - 800 |
| Spring force [N] | 6 - 19 |
| A [mm] | 5,9 |
| D [mm] | 78,0 |
| E [mm] | 5,0 |
| G [mm] | 4,0 |
| I [mm] | 14,0 |
| SW1 [mm] | 8 |
| SW2 [mm] | 14 |
| Max. axial deviation* [°] | 2 |
| Clamping flange**** | MB 12 SC2 |
| Stop sleeve | AH 12 |
| Side load adapter*** | BV 12 SC |
| Locking nut | KM 12 |
| Temperature range [°C] | 0 to +66 |
{{ $t('shop.display.artikel.info') }} SC75EUM7
| {{ $t('shop.all.gewicht') }} | 46 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571611750 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84879059 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | ACE |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 902) atlas9_seiten/902.pdf
