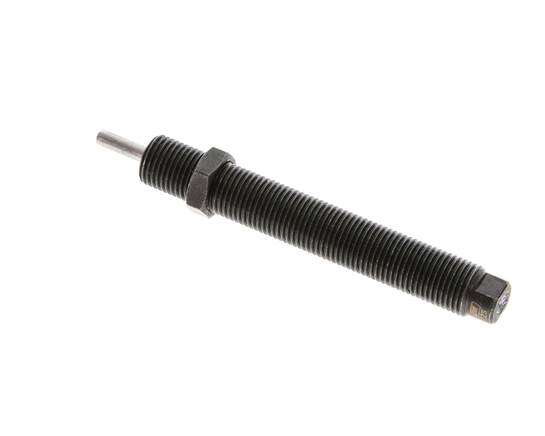

ACE shock absorber, M 10x1, self-adjusting, stroke 8 mm
{{ $t('shop.all.artikelnummer') }}:
SC 25 EUM7 **
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel (type SC 45...: steel hard chrome plated)
Temperature range:
0°C to max. +66°C (SC 45...: -12°C to max. +66°C)
Stroke speed:
0,15 up to 3,7 m/s (Type SC²: 0,1 up to 5,7 m/s, Type SC 45...: 0,02 up to 0,46 m/s)
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel (type SC 45...: steel hard chrome plated)
Temperature range:
0°C to max. +66°C (SC 45...: -12°C to max. +66°C)
Stroke speed:
0,15 up to 3,7 m/s (Type SC²: 0,1 up to 5,7 m/s, Type SC 45...: 0,02 up to 0,46 m/s)
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread B | M 10x1 |
| Stroke [mm] | 8 |
| max. Energy consumption per stroke (W3) [Nm] | 10 |
| max. Energy consumption per hour (W4) [Nm] | 16000 |
| effective mass (me) [KGM] | 42 - 500 |
| Spring force [N] | 4,5 - 14 |
| A [mm] | 5,0 |
| D [mm] | 72,0 |
| E [mm] | 4,0 |
| G [mm] | 3,2 |
| I [mm] | 11,0 |
| SW1 [mm] | 7 |
| SW2 [mm] | 12 |
| Max. axial deviation* [°] | 2 |
| Clamping flange**** | MB 10 SC2 |
| Stop sleeve | AH 10 |
| Side load adapter*** | BV 10 SC |
| Locking nut | KM 10 |
| Temperature range [°C] | 0 to +66 |
{{ $t('shop.display.artikel.info') }} SC25EUM7
| {{ $t('shop.all.gewicht') }} | 29 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571611347 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84879059 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | ACE |
