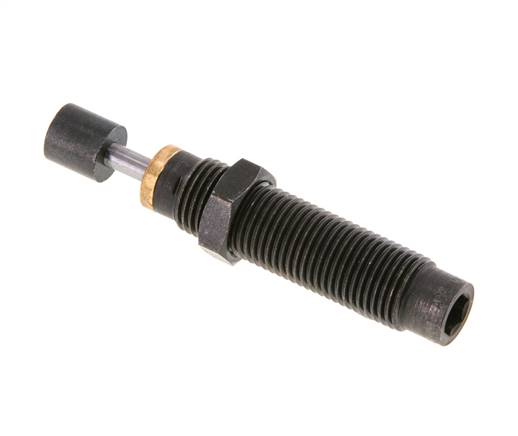

ACE shock absorber, M 10x1, self-adjusting, stroke 6,6 mm
{{ $t('shop.all.artikelnummer') }}:
MC 25 EUML
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel
Temperature range:
-10 to +66 °C
Stroke speed:
0,15 to 4 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4 (max. energy consumed per hour expressed in Nm/h) is possible in the case of temporary switch-off, or when the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating).
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel
Temperature range:
-10 to +66 °C
Stroke speed:
0,15 to 4 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4 (max. energy consumed per hour expressed in Nm/h) is possible in the case of temporary switch-off, or when the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating).
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread B | M 10x1 |
| Stroke [mm] | 6,6 |
| max. Energy consumption per stroke (W3) [Nm] | 2,8 |
| max. Energy consumption per hour (W4) [Nm] | 22600 |
| effective mass (me) [KGM] | 0,7 - 2,2 |
| Spring force [N] | 3 - 6 |
| A [mm] | 5,0 |
| E [mm] | 43,0 |
| F [mm] | 4,0 |
| G [mm] | 3,2 |
| I [mm] | 14,6 |
| J [mm] | 3 |
| K [mm] | 7,6 |
| SW1 [mm] | 5 |
| SW2 [mm] | 12 |
| Max. axial deviation* [°] | 2 |
| clamping flange | MB 10 SC2 |
| Stop sleeve | AH 10 |
| Side load adapter** | BV 10 |
| Locking nut | KM 10 |
{{ $t('shop.display.artikel.info') }} MC25EUML
| {{ $t('shop.all.gewicht') }} | 19 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571481308 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84879059 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | ACE |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 899_900) atlas9_seiten/899_900.pdf
