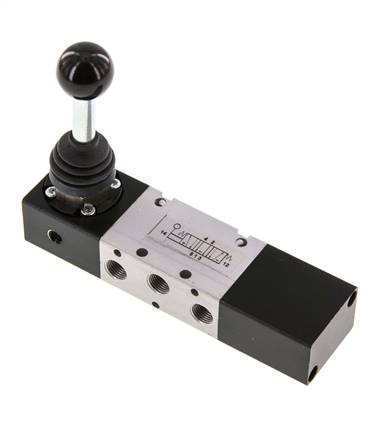

5/3-way hand lever valve, G 1/8", Centre position vented, spring return
{{ $t('shop.all.artikelnummer') }}:
XMV 1410
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR
Temperature range:
-15 to +60 °C
Operating pressure:
-0,95 to 10 bar
Media:
lubricated and unlubricated, filtered compressed air, vacuum
Pressure input:
Possible on every connection
Body and slider: aluminium, seals: NBR
Temperature range:
-15 to +60 °C
Operating pressure:
-0,95 to 10 bar
Media:
lubricated and unlubricated, filtered compressed air, vacuum
Pressure input:
Possible on every connection
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| function | Centre position vented, spring return |
| Thread G (3x) | G 1/8" |
| Thread exhaust air G (2x) | G 1/8" |
| Nominal width [mm] | 5 |
| flow [l/min] | 550 |
| A [mm] | 36 |
| B [mm] | 49,5 |
| C [mm] | 34,0 |
| D [mm] | 32 |
| E [mm] | 23,3 |
| F1 [mm] | 18 |
| F2 [mm] | 34 |
| H [mm] | 5,5 |
| K1 [mm] | 32 |
| K2 [mm] | 17,2 |
| L [mm] | 86,5 |
| M [mm] | 22 |
| N [mm] | 14,0 |
| O [mm] | 10,0 |
| P [mm] | 18 |
{{ $t('shop.display.artikel.info') }} XMV1410
| {{ $t('shop.all.gewicht') }} | 260 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571802578 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84814090 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 748) atlas9_seiten/748.pdf
3D CAD file (volume model) protected/cad/3d/72460/xmv1410#29061.stp
3D CAD file (volume model) protected/cad/3d/72460/xmv1410#29061.stp
