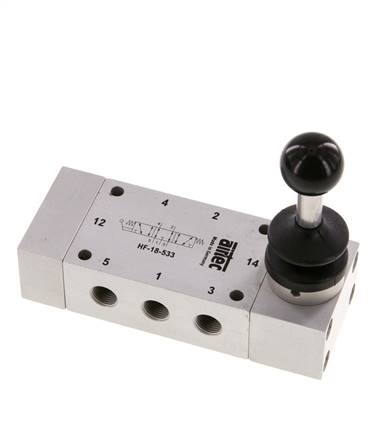

5/3-way hand lever valve, Centre position vented, spring return, G 1/8"
{{ $t('shop.all.artikelnummer') }}:
HF 18 533 *
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: Aluminium, internal parts: Aluminium, stainless steel, hand lever: Stainless steel, seals: POM / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Body and slider: Aluminium, internal parts: Aluminium, stainless steel, hand lever: Stainless steel, seals: POM / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| function | Centre position vented, spring return |
| Thread (3x) | G 1/8" |
| Thread exhaust air (2x) | G 1/8" |
| Nominal width [mm] | 6 |
| flow [l/min] | 780 |
| Operating pressure [bar] | 0 - 10 |
| A [mm] | 40 |
| B [mm] | 25 |
| C [mm] | 52 |
| D [mm] | 30 |
| E [mm] | 4,5 |
| F [mm] | 25 |
| G [mm] | 45 |
| H [mm] | 88 |
| I [mm] | 31 |
| L [mm] | 105 |
| M [mm] | 18 |
{{ $t('shop.display.artikel.info') }} HF18533
| {{ $t('shop.all.gewicht') }} | 320 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571359249 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 765_765a) atlas9_seiten/765_765a.pdf
Documentation doku/hf.pdf
3D CAD file (volume model) protected/cad/3d/70001/hf185336198.stp
Documentation doku/hf.pdf
3D CAD file (volume model) protected/cad/3d/70001/hf185336198.stp
