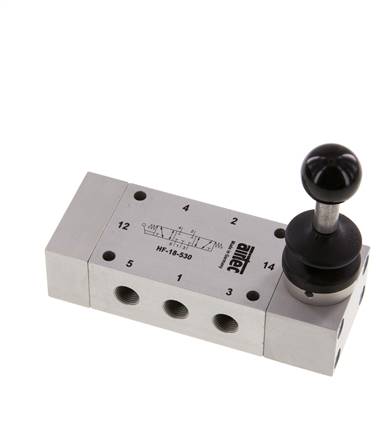

5/3-way hand lever valve, Centre position closed, spring return, G 1/8"
Item number:
HF 18 530 *
Item description
Materials:
Body and slider: Aluminium, internal parts: Aluminium, stainless steel, hand lever: Stainless steel, seals: POM / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Body and slider: Aluminium, internal parts: Aluminium, stainless steel, hand lever: Stainless steel, seals: POM / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Properties
| function | Centre position closed, spring return |
| Thread (3x) | G 1/8" |
| Thread exhaust air (2x) | G 1/8" |
| Nominal width [mm] | 6 |
| flow [l/min] | 780 |
| Operating pressure [bar] | 0 - 10 |
| A [mm] | 40 |
| B [mm] | 25 |
| C [mm] | 52 |
| D [mm] | 30 |
| E [mm] | 4,5 |
| F [mm] | 25 |
| G [mm] | 45 |
| H [mm] | 88 |
| I [mm] | 31 |
| L [mm] | 105 |
| M [mm] | 18 |
Further information on HF18530
| Weight | 320 g / pcs |
| GTIN | 4050571359232 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
