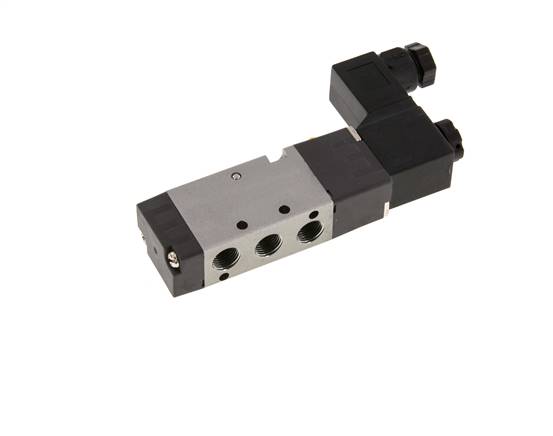

5/2-way solenoid valve, G 1/8", spring return, 24 V AC

Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide

Temperature range:
-5 to +60 °C

Operating pressure:
1,5 to 8 bar

Media:
oiled and unoiled filtered compressed air

Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Service life:
min. 40 million switching cycles

Structural shape solenoid coil:
S (plug size 0)

Information:
The coil and plug are enclosed as loose parts.

Control voltage	24 V AC
Switching	5/2-way
function	spring return*
Thread G1 (3x)	G 1/8"
Thread exhaust air G2 (2x)	G 1/8"
Nominal width [mm]	3,9
flow [l/min]	500
Power consumption (AC) [VA]	3
Spare solenoid coil	MAG S 24VAC
A [mm]	103,1
B [mm]	27
C [mm]	18
D [mm]	9,5
E [mm]	24,5
F [mm]	14
H1 [mm]	3,3
H2 [mm]	3,3
J [mm]	13
K [mm]	16,5
L [mm]	30
M [mm]	17,9
N [mm]	28
O [mm]	23,5
P [mm]	3
S [mm]	16
T [mm]	31,5
U [mm]	55,2
V [mm]	33,9
W [mm]	2
