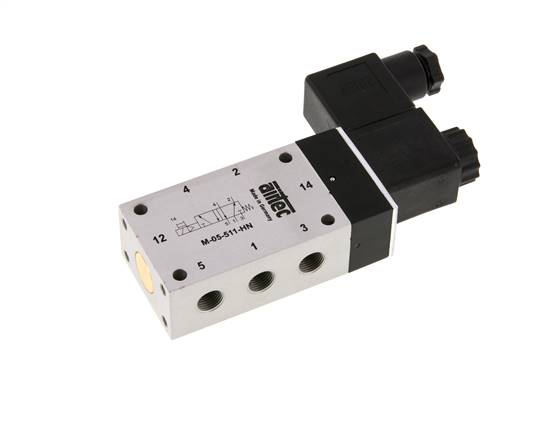

5/2-way solenoid valve, G 1/8", spring, 24 V AC, Standard
{{ $t('shop.all.artikelnummer') }}:
M 05511HN 24VAC
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Structural shape solenoid coil:
N (plug size 1) (M 20 510: O, plug size 0)
Pressure input:
Connection 1
Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Structural shape solenoid coil:
N (plug size 1) (M 20 510: O, plug size 0)
Pressure input:
Connection 1
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Standard |
| Control voltage | 24 V AC |
| Resetting by | spring |
| Thread (3x) | G 1/8" |
| Thread exhaust air (2x) | G 1/8" |
| Nominal width [mm] | 6 |
| flow [l/min] | 750 |
| Operating pressure [bar] | 3 - 10 |
| Power consumption (AC) [VA] | 4 |
| Spare solenoid coil | MAG N 24VAC |
{{ $t('shop.display.artikel.info') }} M05511HN24VAC
| {{ $t('shop.all.gewicht') }} | 270 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571470869 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 751) atlas9_seiten/751.pdf
