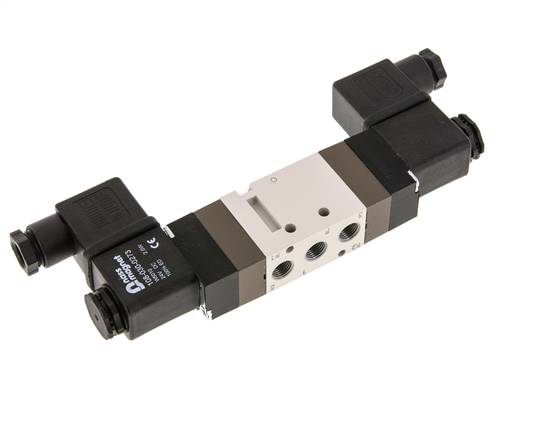

5/2-way solenoid valve, G 1/8", pulse valve, 115 V AC
{{ $t('shop.all.artikelnummer') }}:
SF3200 IPSC-A1
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Switching time (at 5 bar):
< 25 ms
Protection class:
Structural shape solenoid coil:
M (plug size 1)
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Switching time (at 5 bar):
< 25 ms
Protection class:
Structural shape solenoid coil:
M (plug size 1)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Control voltage | 115 V AC |
| function | pulse valve |
| Thread (3x) | G 1/8" |
| Thread exhaust air (2x) | G 1/8" |
| Operating pressure [bar] | 1,5 - 10 |
| flow [l/min] | 620 |
| Power consumption (DC) [VA] | 4,1 |
| Spare solenoid coil | MAG M 115V |
{{ $t('shop.display.artikel.info') }} SF3200IPSC-A1
| {{ $t('shop.all.gewicht') }} | 360 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571622343 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | YPC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 734) atlas9_seiten/734.pdf
Documentation doku/magnetventile_5_2_5_3.pdf
Documentation doku/magnetventile_5_2_5_3.pdf
