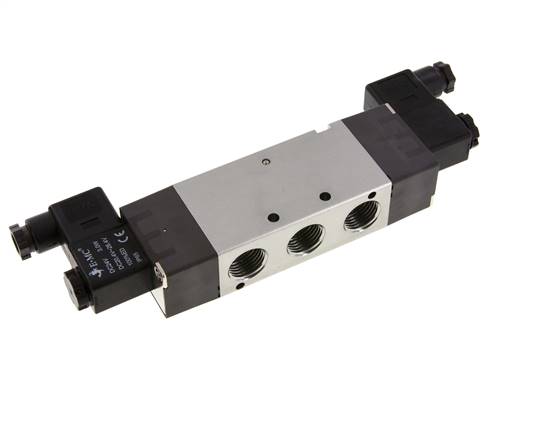

5/2-way solenoid valve, G 1/2", pulse valve, 24 V DC

Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide

Temperature range:
-5 to +60 °C

Operating pressure:
1,5 to 8 bar

Media:
oiled and unoiled filtered compressed air

Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Service life:
min. 40 million switching cycles

Structural shape solenoid coil:
T1 (plug size 1)

Information:
The coil and plug are enclosed as loose parts.

Control voltage	24 V DC
Switching	5/2-way
function	pulse valve
Thread G1 (3x)	G 1/2"
Thread exhaust air G2 (2x)	G 1/2"
Nominal width [mm]	8
flow [l/min]	2250
Power consumption (DC) [W]	3
Spare solenoid coil	MAG T1 24V=
A [mm]	223,4
B [mm]	50
C [mm]	34
D [mm]	17,5
E [mm]	97,7
F [mm]	28
H1 [mm]	5,5
H2 [mm]	4,3
J [mm]	27
K [mm]	75,7
L [mm]	72
M [mm]	80,2
N [mm]	63
O [mm]	93,7
P [mm]	4
S [mm]	36
T [mm]	112
U [mm]	75
V [mm]	40,5
W [mm]	0

{{ $t('shop.all.gewicht') }}	650 g / pcs
{{ $t('shop.all.gtin') }}	4050571716035
{{ $t('shop.display.artikel.zollwarennummer') }}	84812090
{{ $t('shop.all.hersteller') }}	EMC
