Item description
Materials:
Body: anodized aluminium, internal parts: stainless steel, brass and aluminium, lever: aluminium, plunger and roller: stainless steel and plastic
Temperature range:
-10 to +70 °C
Operating pressure:
0 to 12 bar
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Body: anodized aluminium, internal parts: stainless steel, brass and aluminium, lever: aluminium, plunger and roller: stainless steel and plastic
Temperature range:
-10 to +70 °C
Operating pressure:
0 to 12 bar
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Properties

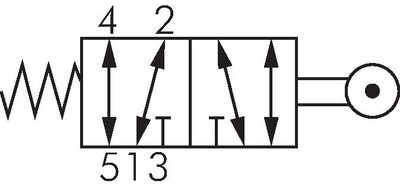

| Actuation | Roller lever |
| Thread (3x) | G 1/8" |
| Thread exhaust air (2x) | G 1/8" |
| Nominal width [mm] | 4 |
| flow [l/min] | 320 |
| Actuating force at 6 bar [N] | 18 |
Further information on ER18510
| Weight | 120 g / pcs |
| GTIN | 4050571283889 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 761a) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*available for vacuum applications on request
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
