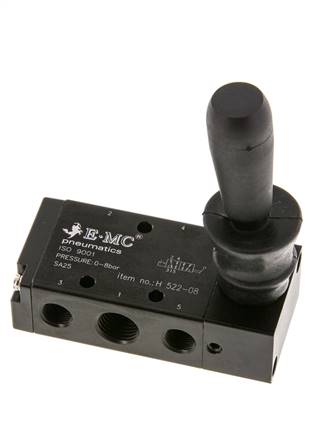

5/2-way hand lever valve, Detend, G 1/4"
{{ $t('shop.all.artikelnummer') }}:
H 522-08
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR
Temperature range:
-5 to +60 °C
Operating pressure:
0 to 8 bar
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Body and slider: aluminium, seals: NBR
Temperature range:
-5 to +60 °C
Operating pressure:
0 to 8 bar
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| function | Detend |
| Thread G1 (3x) | G 1/4" |
| Thread exhaust air G2 (2x) | G 1/8" |
| Nominal width [mm] | 4,5 |
| flow [l/min] | 800 |
| A [mm] | 76,7 |
| B [mm] | 35 |
| C [mm] | 22 |
| D [mm] | 31,7 |
| E [mm] | 21,7 |
| F [mm] | 20 |
| H [mm] | 4,3 |
| J [mm] | 24 |
| K [mm] | 90 |
| M [mm] | 14,2 |
| N [mm] | 35 |
| O [mm] | 21,7 |
| P [mm] | 3 |
| S [mm] | 20 |
| T [mm] | 31,7 |
| W [mm] | 0 |
{{ $t('shop.display.artikel.info') }} H522-08
| {{ $t('shop.all.gewicht') }} | 180 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571350024 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 726_726a) atlas9_seiten/726_726a.pdf
3D CAD file (volume model) protected/cad/3d/73566/h522-08313526.stp
3D CAD file (volume model) protected/cad/3d/73566/h522-08313526.stp
