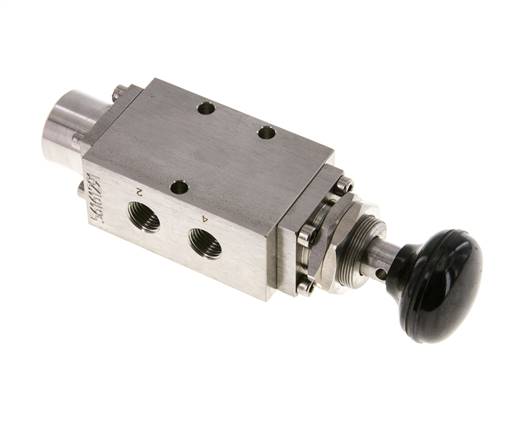

5/2-way Button actuated valve, G 1/4", spring return
{{ $t('shop.all.artikelnummer') }}:
T 05 511 ESG *
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: 1.4436, seals: FKM
Temperature range:
-20 to +180 °C
Operating pressure:
-0,95 to 12 bar
Media:
lubricated and unlubricated compressed air, non-toxic gases (50 µm)
Pressure input:
Possible on every connection
Switch panel mounting:
Two nuts for the panel mounting are included in the scope of delivery (hole diameter: 24 mm, max. sheet metal thickness: 5 mm)
Body and slider: 1.4436, seals: FKM
Temperature range:
-20 to +180 °C
Operating pressure:
-0,95 to 12 bar
Media:
lubricated and unlubricated compressed air, non-toxic gases (50 µm)
Pressure input:
Possible on every connection
Switch panel mounting:
Two nuts for the panel mounting are included in the scope of delivery (hole diameter: 24 mm, max. sheet metal thickness: 5 mm)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Switching | 5/2-way |
| function | spring return |
| Thread | G 1/4" |
| Thread exhaust air | 2x G 1/4" |
| Actuating force at 10 bar [N] | 89 |
| flow [l/min] | 700 |
{{ $t('shop.display.artikel.info') }} T05511ESG
| {{ $t('shop.all.gewicht') }} | 900 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571682224 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 784) atlas9_seiten/784.pdf
3D CAD file (volume model) protected/cad/3d/73214/t05511esg41814.stp
