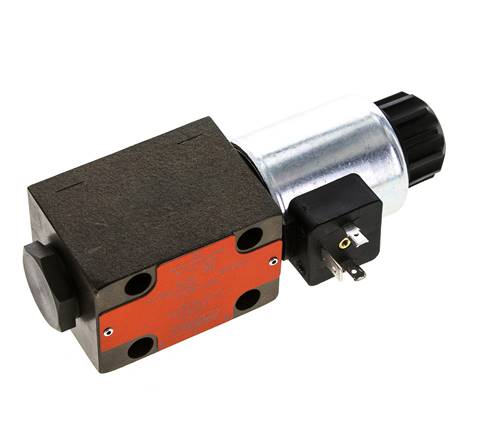

4/2-directional valve, NG 6 (Alternatively) D-piston, 24 V DC

Suitable:
These solenoid-operated way valves are used in hydraulic systems predominantly for starting, stopping and changing the direction of flow of the liquid. Using NG 6 the pressure valve, the flow control valve and the check valve sandwich plates are arranged like a stack to form a circuit in the smallest space possible.

Materials:
Body: Spheroidal cast iron, internal parts: Steel, seals: NBR

Temperature range:
-30 to +80 °C

Media:
Hydraulic oils on the basis of mineral oil (viscosity: Bosch Rexroth: 2,8 - 500 mm²/s, alternatively: 20 - 400 mm²/s)

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Operating pressure:
0 to 350 bar

Nominal flow:
Up to approx. 80 l/min (request pressure loss curves if required), we recommend usage up to approx. 40 l/min

Note:
The connection pattern NG 6 is standardised in accordance with DIN 24340-A6, ISO 4401-03, CETOP R 35 H-03 and NFPA-D03. The valves must be attached with screws of strength class 12.9.

Scope of delivery:
Valve including seals, without screws and plugs.

Warning:
Please do not forget to order screws and valve plugs.

Version	Alternatively
function	4/2-directional valve
Schematic symbol	D
Control voltage	24 V DC
Power consumption (DC) [W]	30
compatible standard connector	ST 03
suitable screws (4 pcs. per valve required)	912-M5X45 12.9
Spare solenoid coil	LA-4WE6MAG24V=
B [mm]	149,5
C [mm]	85,0
Screw length [mm]	45

{{ $t('shop.all.gewicht') }}	1,5 kg / pcs
{{ $t('shop.all.gtin') }}	4050571460075
{{ $t('shop.display.artikel.zollwarennummer') }}	84812010
