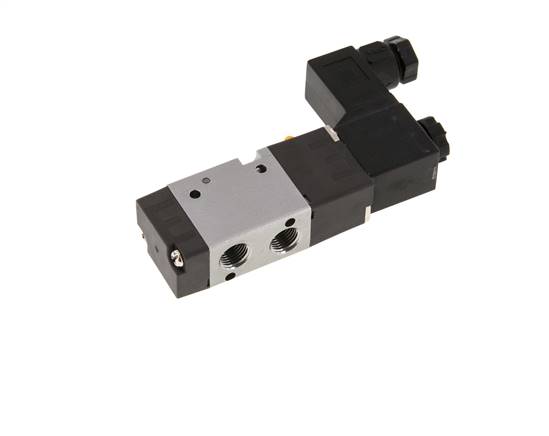

3/2-way solenoid valve, G 1/8", closed (NC), 24 V DC

Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide

Temperature range:
-5 to +60 °C

Operating pressure:
1,5 to 8 bar

Media:
oiled and unoiled filtered compressed air

Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Service life:
min. 40 million switching cycles

Structural shape solenoid coil:
S (plug size 0)

Information:
The coil and plug are enclosed as loose parts.

Control voltage	24 V DC
function	closed (NC)*
Thread G1 (2x)	G 1/8"
Thread exhaust air G1 (1x)	G 1/8"
Nominal width [mm]	3,9
flow [l/min]	500
Power consumption (DC) [W]	2,8
Spare solenoid coil	MAG S 24V=
A [mm]	92,1
B [mm]	27
C [mm]	18
D [mm]	7,5
E [mm]	15,5
F [mm]	21
H1 [mm]	3,2
H2 [mm]	3,3
J [mm]	13
K [mm]	16,5
L [mm]	19
M [mm]	18,0
N [mm]	16
O [mm]	27,0
P [mm]	1,5
U [mm]	55,2
V [mm]	33,9
W [mm]	2

{{ $t('shop.all.gewicht') }}	115 g / pcs
{{ $t('shop.all.gtin') }}	4050571714635
{{ $t('shop.display.artikel.zollwarennummer') }}	84812090
{{ $t('shop.all.hersteller') }}	EMC
